Introducing!

High Volume Crimpers

All High Volume Crimpers come with silent pumps and self-lubricating moving parts. They’re available in two body styles: the standard body style with fixed 6 o’clock die position, geared towards production volume, hydraulic hose assembly work; as well as the space saving, slim body style, with an extra wide opening to accommodate large industrial hose, couplings and flanges.


Which crimper is right for you?

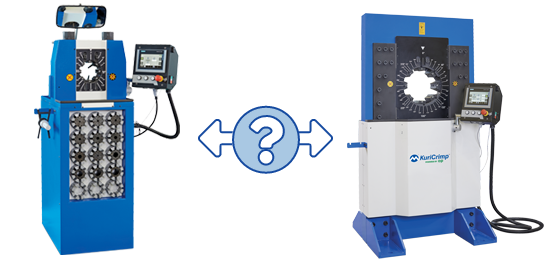

Compare High Volume Crimpers Comparison Guide

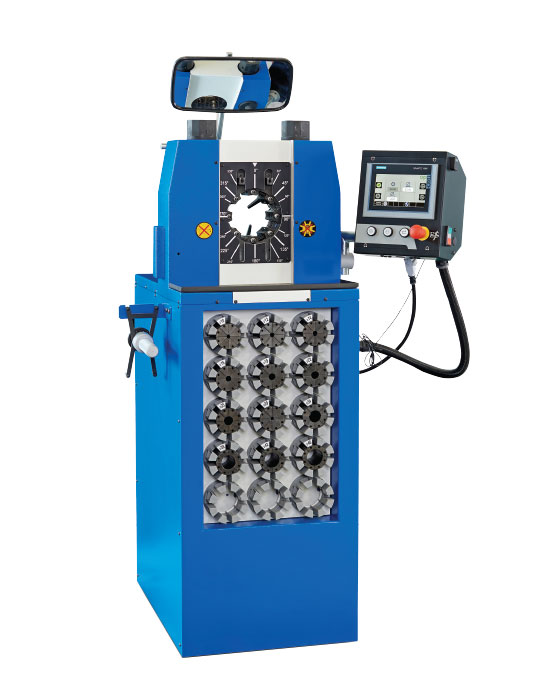

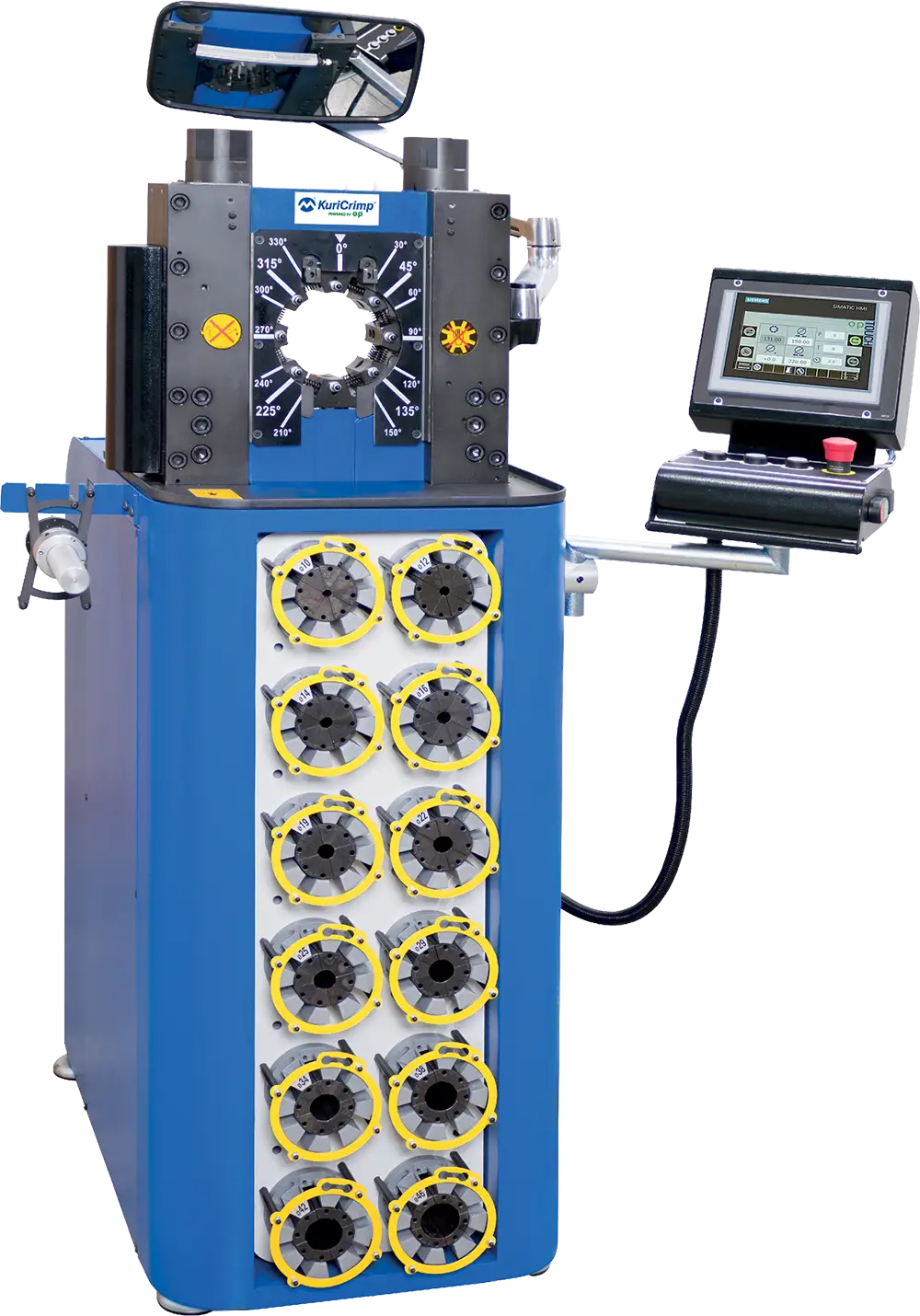

KC4-V59 Series

KC4-V59 Series
  • A mass production crimper boasting an impressive 3,900* crimps per hour. Its back limit switch and advanced Siemen’s ES4 computerized controller take efficiency to the highest level. The crimping chamber is fixed at the 6 o'clock position allowing the hose to rest inside the chamber rather than having to be centered.

  • Hose Capacity (in) Crimping Force (ton)
    1 – 2 Wire 1 1/2 155
    4 SP / 6 SP 1 1/4 / 1
    90° Fittings 1 1/2
    Industrial NA

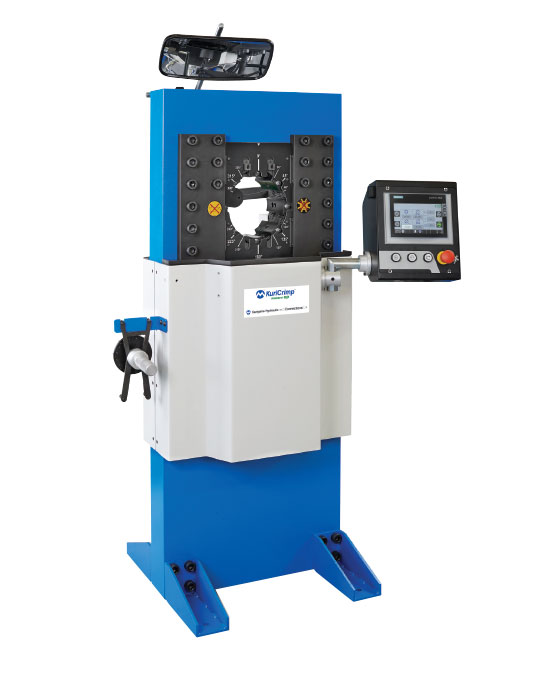

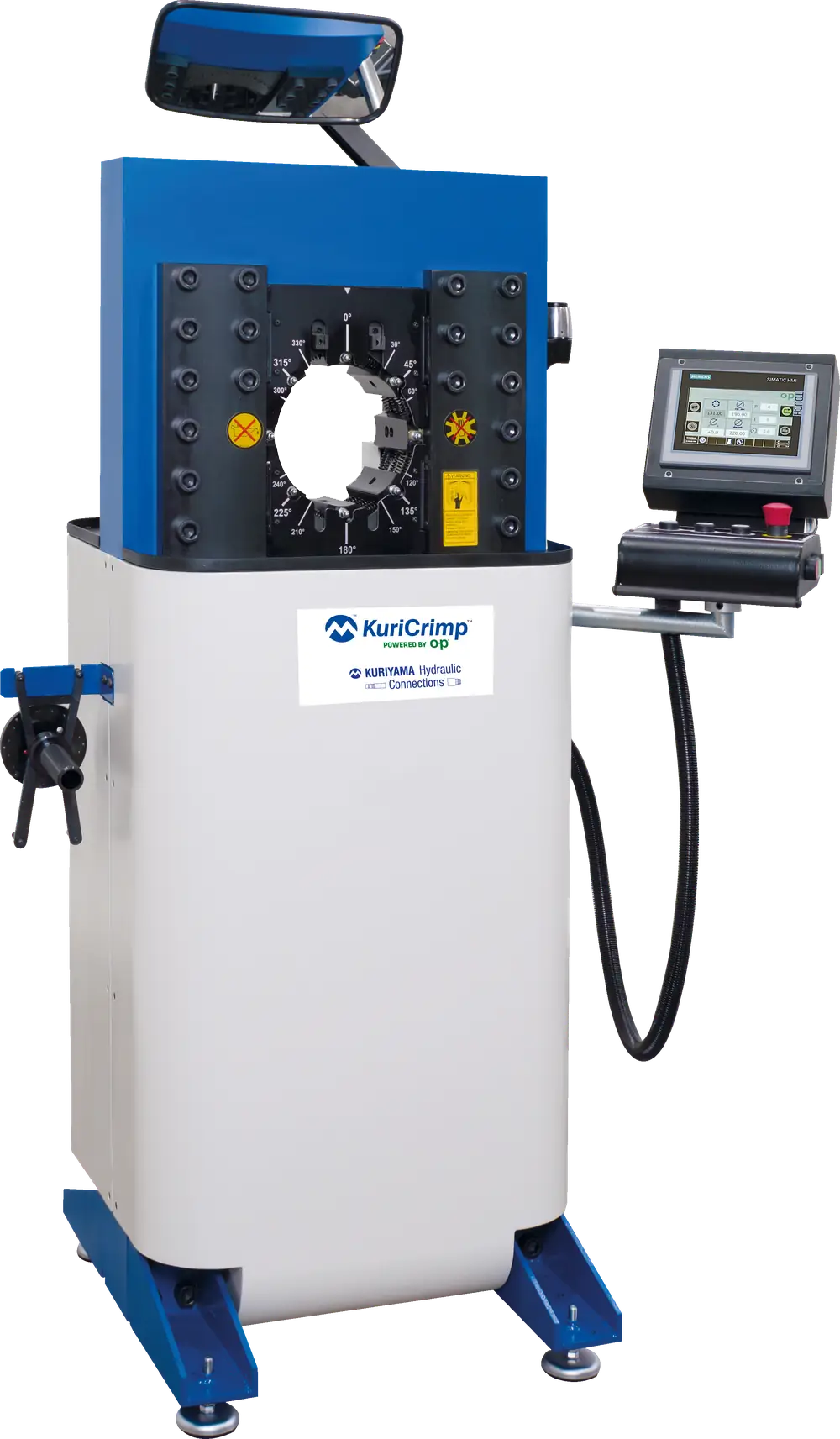

KC4-V150 Series

KC4-V150 Series
  • A high volume, production crimper, the KC4-V150 crimps all types and sizes of hydraulic hose, as well as industrial hose up to 4". Its back limit switch and advanced Siemen’s ES4 computerized controller take efficiency to the highest level. Its power pack is separated from the main unit creating a thin profile.

  • Hose Capacity (in) Crimping Force (ton)
    1 – 2 Wire 2 1/2 340
    4 SP / 6 SP 2 1/2
    90° Fittings 2 1/2
    Industrial 4

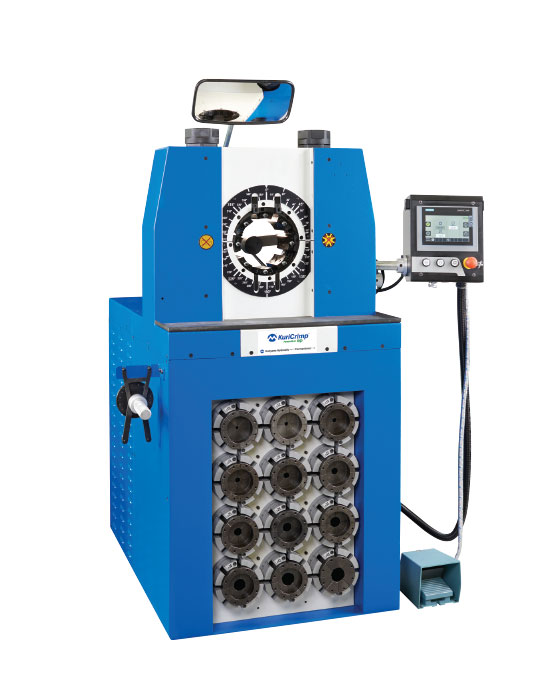

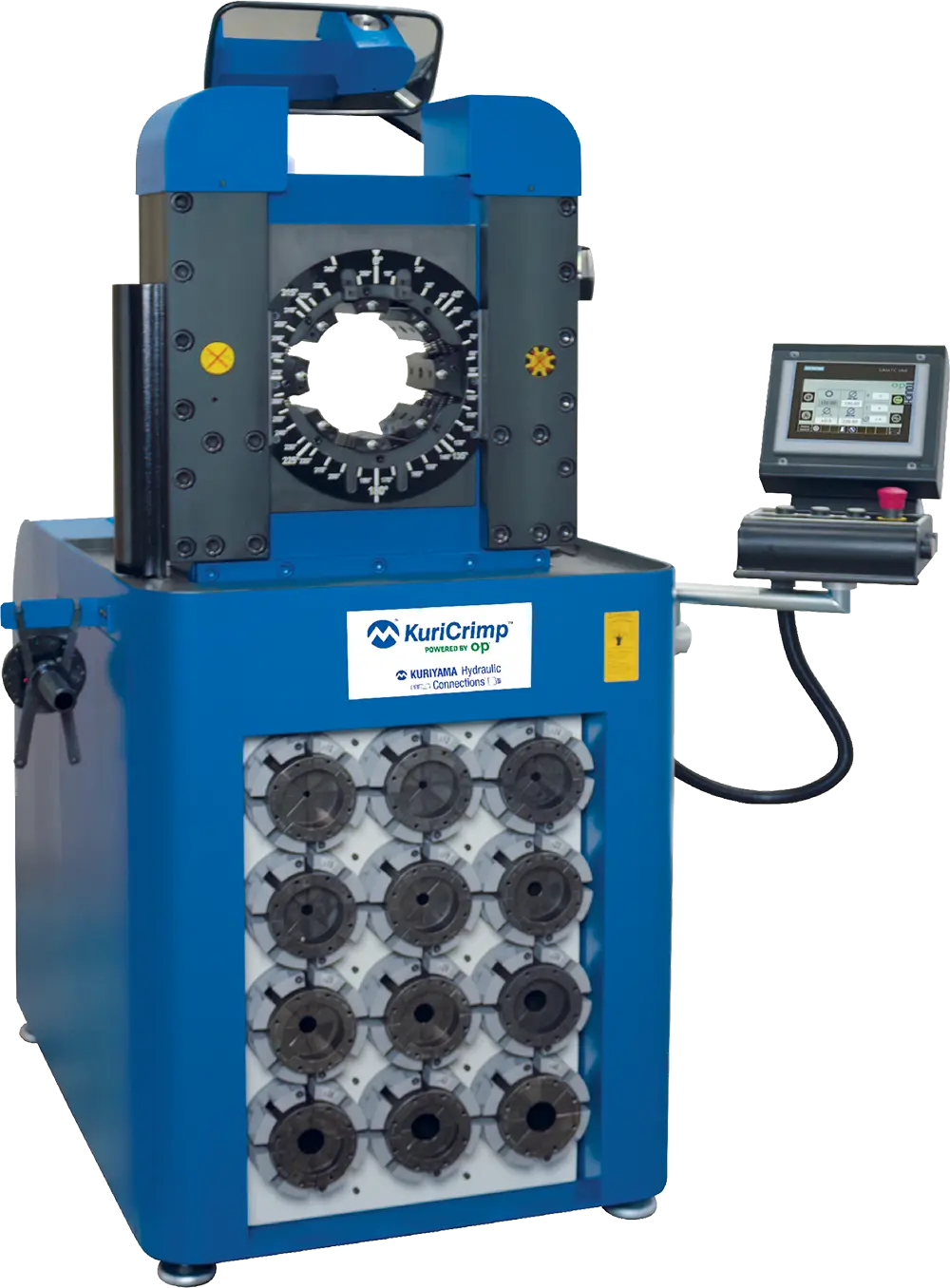

KC4-V159 Series

KC4-V159 Series
  • A mass production hydraulic hose crimper, boasting an impressive 2,400* crimps per hour. Its back limit switch and advanced Siemen’s ES4 computerized controller take efficiency to the highest level. Handles a wide range of industrial hose as well up to 6." The crimping chamber is fixed at the 6 o'clock position allowing the hose to rest inside the chamber rather than having to be centered. Reduction dies included.

  • Hose Capacity (in) Crimping Force (ton)
    1 – 2 Wire 2 1/2 330
    4 SP / 6 SP 2 1/2
    90° Fittings 2 1/2
    Industrial 5*

    * Up to 6" (depending on hose and coupling type)

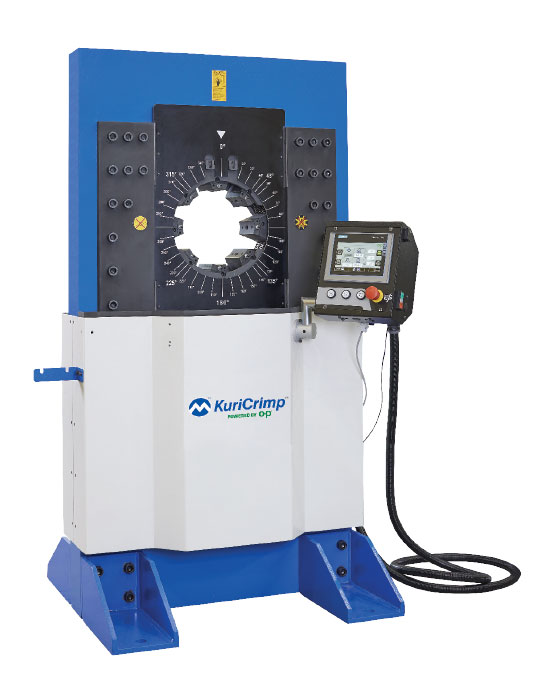

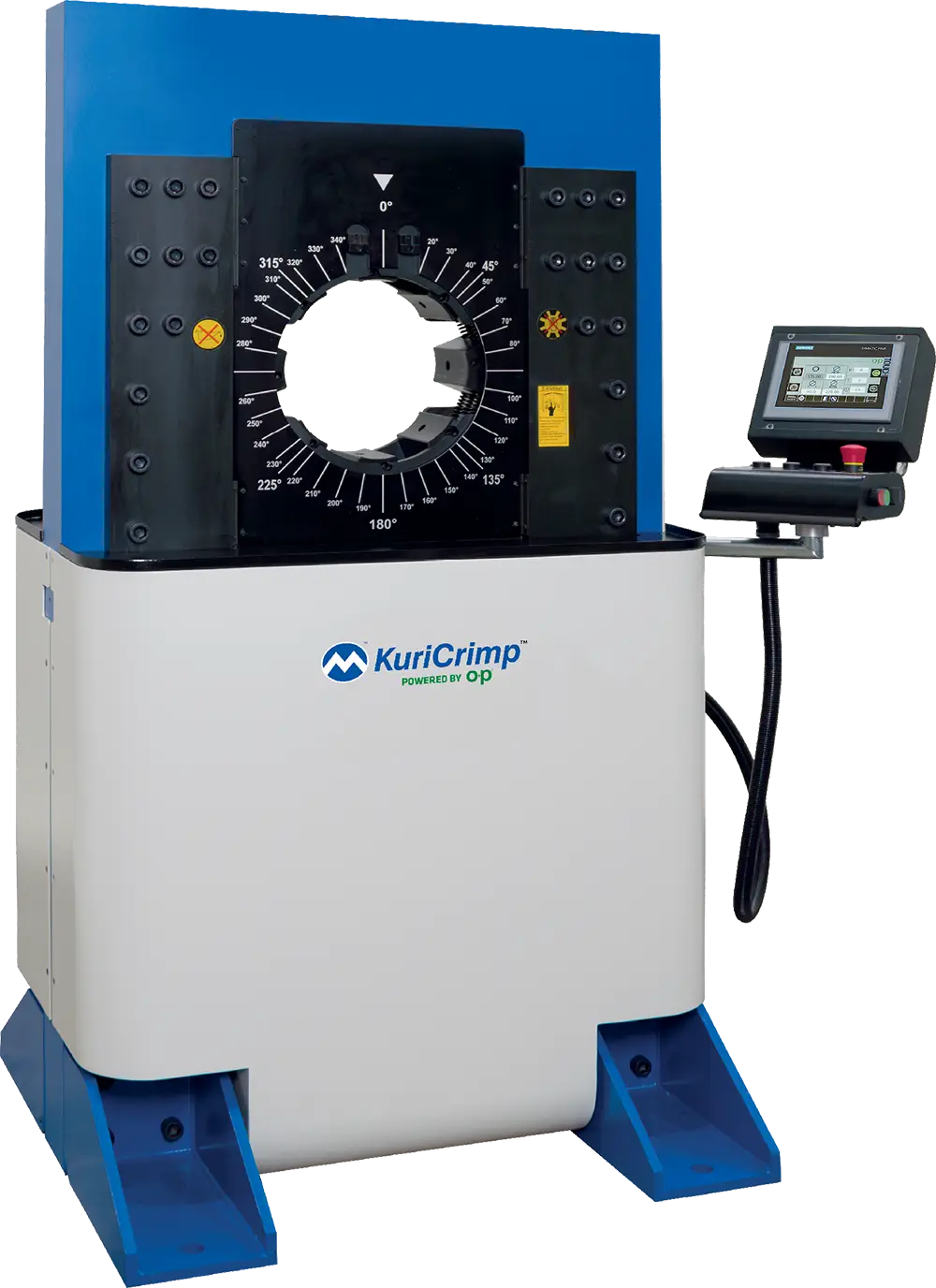

KC4-V160 Series

KC4-V160 Series
  • Handles industrial hose up to 6" and features an enlarged opening mechanism that allows for assemblies with large couplings or flanges. Its back limit switch and advanced Siemen’s ES4 computerized controller greatly reduce cycle times. Its power pack is separated from the main unit creating a thin profile. Reduction dies included.

  • Hose Capacity (in) Crimping Force (ton)
    1 – 2 Wire 3 386
    4 SP / 6 SP 3
    90° Fittings 3
    Industrial 6

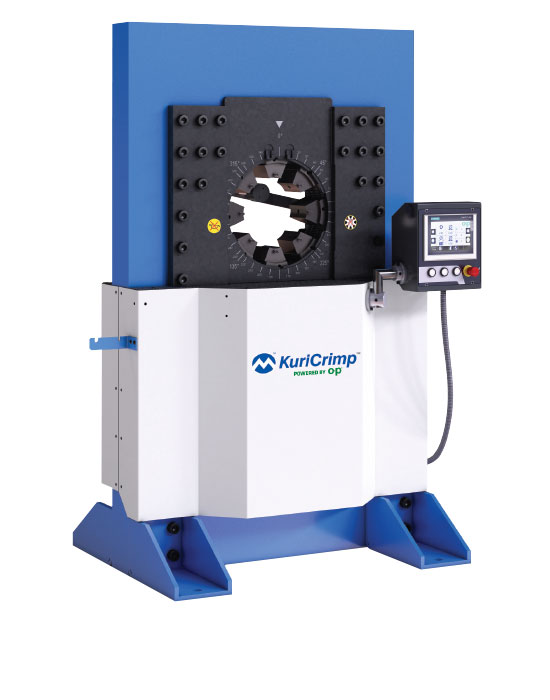

KC4-V250 Series

KC4-V250 Series
  • Handles industrial hose up to 10" and features an enlarged opening mechanism that allows for assemblies with large couplings or flanges. Its back limit switch option and advanced Siemen’s ES4 computerized controller greatly reduce cycle times. Its power pack is separated from the main unit creating a thin profile. Reduction dies included.

  • Hose Capacity (in) Crimping Force (ton)
    1 – 2 Wire 3 551
    4 SP / 6 SP 3
    90° Fittings 3
    Industrial 10

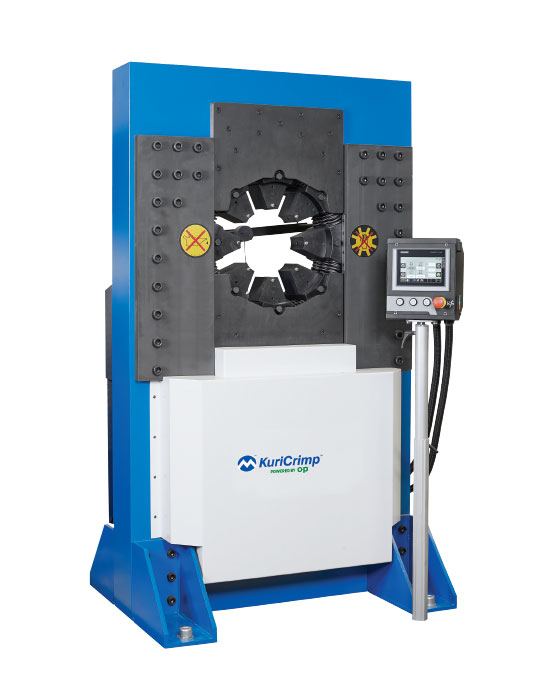

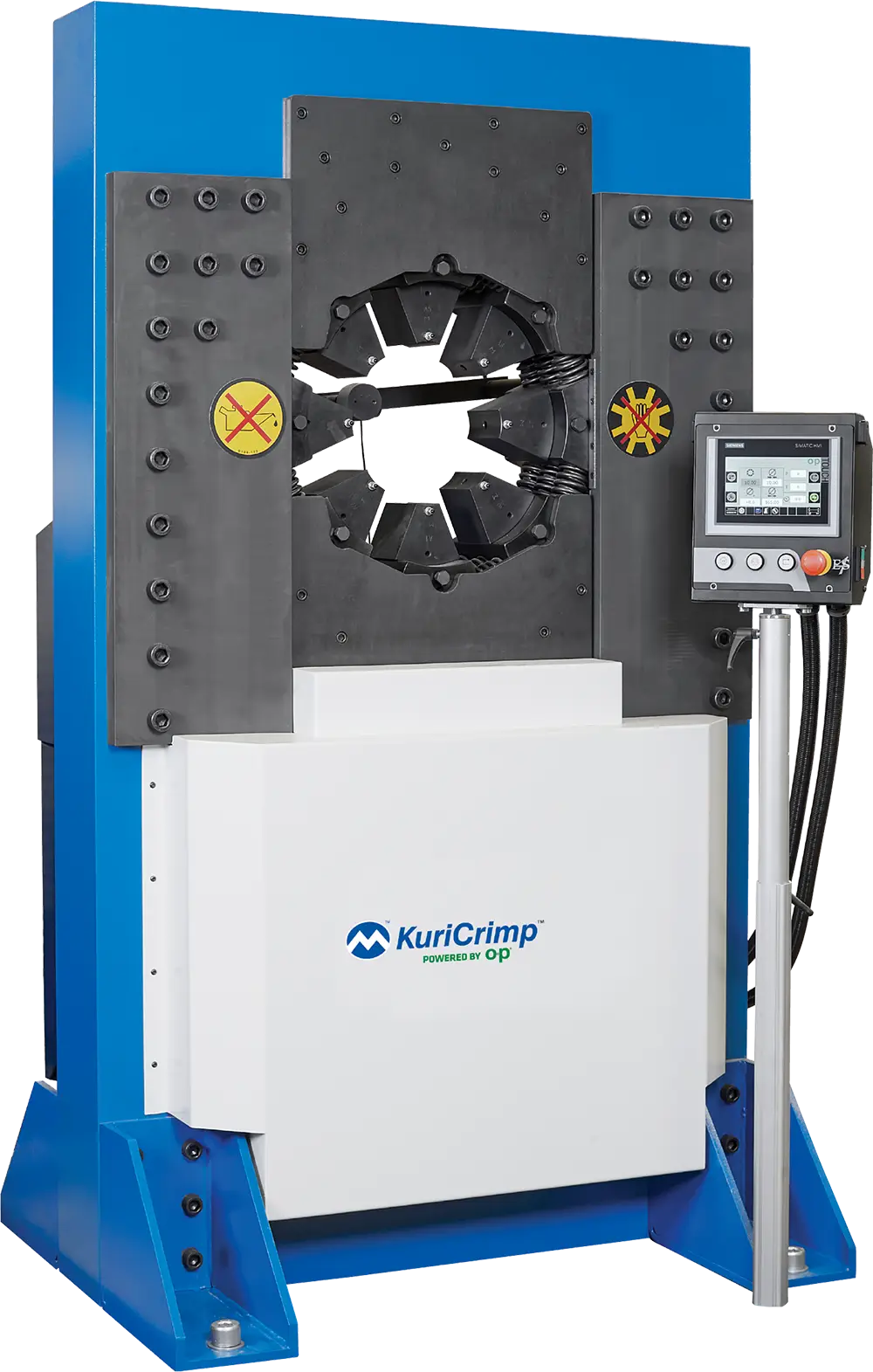

KC4-V300 Series

KC4-V300 Series
  • Handles industrial hose up to 12" and features an enlarged opening mechanism that allows for assemblies with large couplings or flanges. Its back limit switch and advanced Siemen’s ES4 computerized controller greatly reduce cycle times. Its power pack is separated from the main unit creating a thin profile. Reduction dies sold separately.

  • Hose Capacity (in) Crimping Force (ton)
    1 – 2 Wire 3 725
    4 SP / 6 SP 3
    90° Fittings 3
    Industrial 12

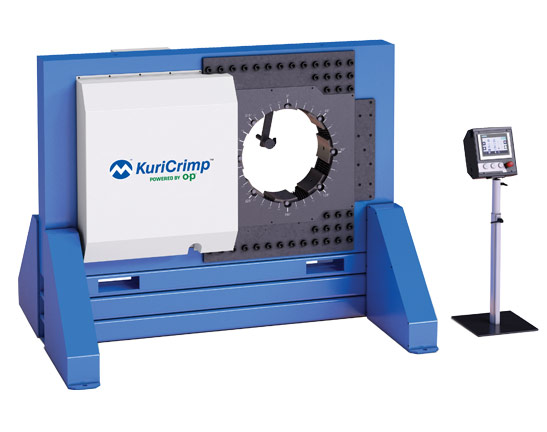

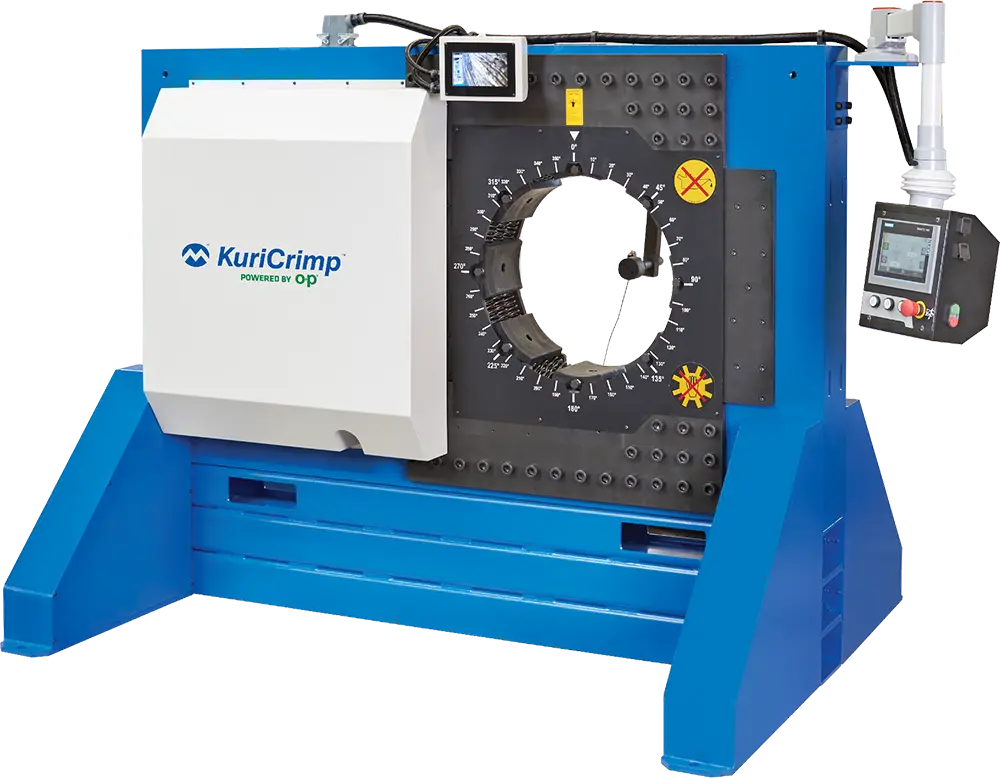

KC4-V450 Series

KC4-V450 Series
  • With the ability to crimp up to 16" hose with large couplings and flanges there’s no job too big for the KC4-V450. Its horizontal profile eliminates the need to hoist large, heavy hoses high off the ground. Its back limit switch and advanced Siemen’s ES4 computerized controller greatly reduce cycle times. Its power pack is separated from the main unit creating a thin profile.

  • Hose Capacity (in) Crimping Force (ton)
    1 – 2 Wire 3 728
    4 SP / 6 SP 3
    90° Fittings 3
    Industrial 16
