Introducing!

Hose Saws

The perfect complement to the crimper line, the KuriSaw™ Line includes a full range of both benchtop and stand-alone saws, for a variety of hydraulic and industrial hose cutting applications. Their large diameter blades provide smooth, clean hose cuts with low smoke. For industrial hose assembly the benchtop KCS-TF4/E Series, and convertible stand-alone/benchtop KCS-TF5 Series handle up to 4" and 5" hose respectively.


Which saw is right for you?


Compare Hose Saws Comparison Guide

KCS-TF1/E-110/1

KCS-TF1/E-110/1 hose saw
  • A compact, bench mounted unit ideal for cutting 1 1/4" four spiral and 1" six spiral hydraulic hose.

    Suggested for pairing with KC1-H83 and KC3-H88 series crimpers.

  • Hose Capacity (in) Motor Strength (HP)
    1 – 2 Wire 1 1/4 1.5
    4 SP / 6 SP 1 1/4 / 1
    Industrial 2
    Max opening (mm) 60

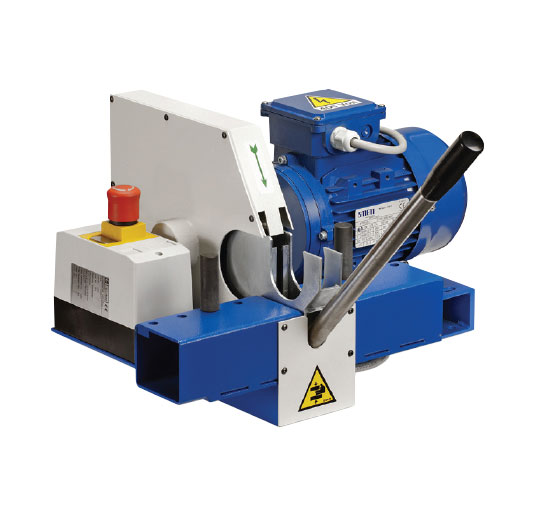

KCS-TF2/E-230/1

KCS-TF2/E-230/1 hose saw
  • A compact, bench mounted unit ideal for cutting 2" four spiral and 1 1/2" six spiral hydraulic hose.

    Ideal for use with KC1-H130 series crimpers.

  • Hose Capacity (in) Motor Strength (HP)
    1 – 2 Wire 2 4
    4 SP / 6 SP 2 / 1 1/2
    Industrial 2
    Max opening (mm) 75

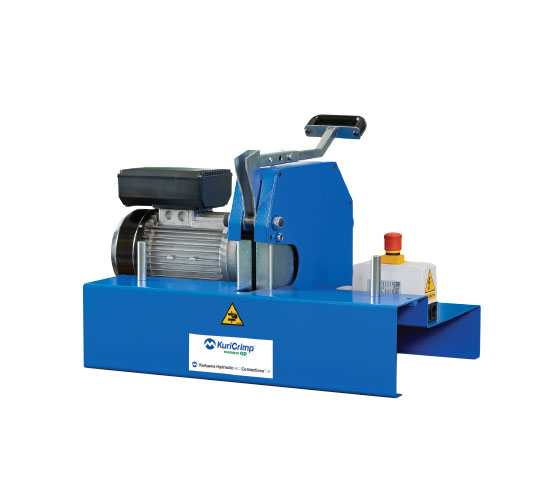

KCS-TF3/E-230/1

KCS-TF3E-2301 hose saw
  • A stand alone unit ideal for cutting 2" four spiral and six spiral hydraulic hose. The blade is recessed inside the base for additional safety.

    Suggested for use with KC1-H135 series crimpers.

  • Hose Capacity (in) Motor Strength (HP)
    1 – 2 Wire 2 4
    4 SP / 6 SP 2
    Industrial 2 1/2
    Max opening (mm) 85

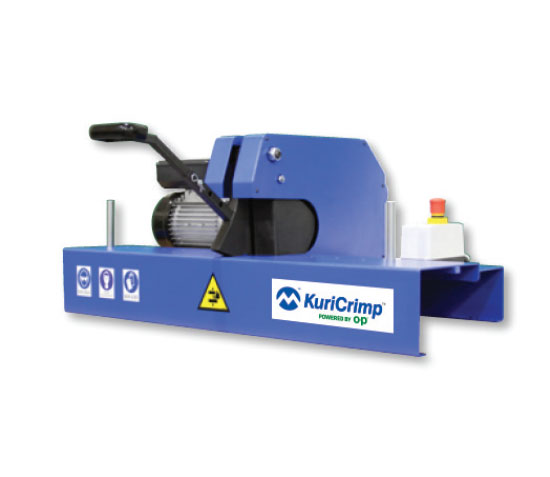

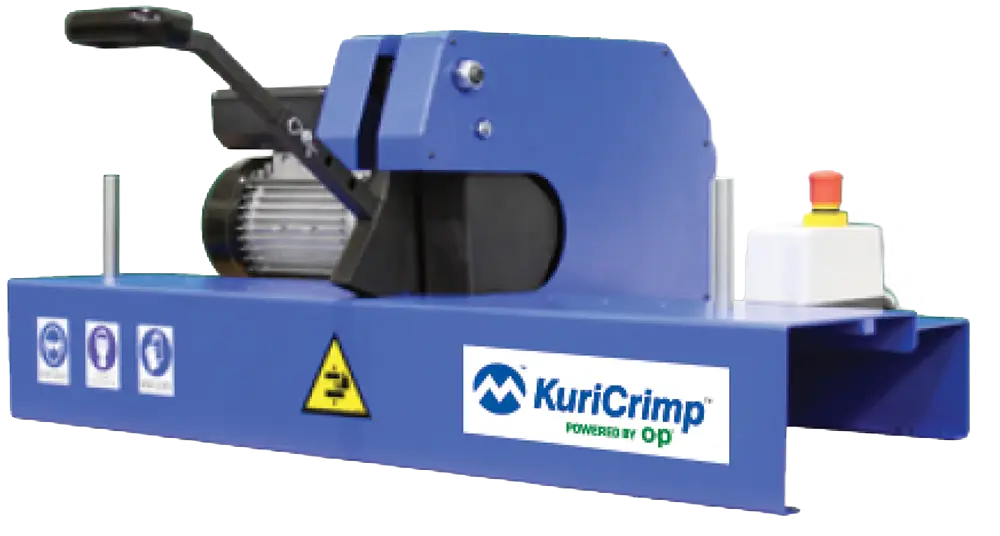

KCS-TF4/E-230/1

KCS-TF4E-2301 hose saw
  • Ideal for industrial hoses, cutting up to 4" ID. Can be placed on the ground, eliminating the need to lift heavy hoses.

    Diamond blade included in order to cut through heavy walled hoses or ones with steel helical reinforcement.

    Ideal for use with KC3-H144 or KC3-H170 series crimpers.

  • Hose Capacity (in) Motor Strength (HP)
    1 – 2 Wire 3 5.5
    4 SP / 6 SP 4
    Industrial 4
    Max opening (mm) 130

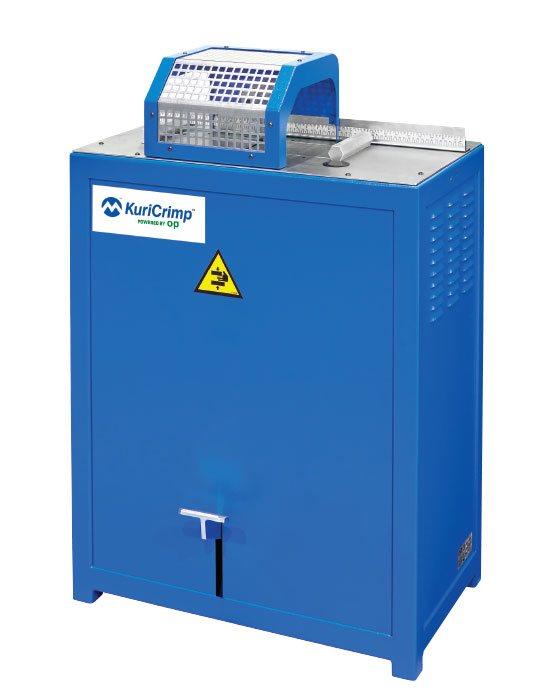

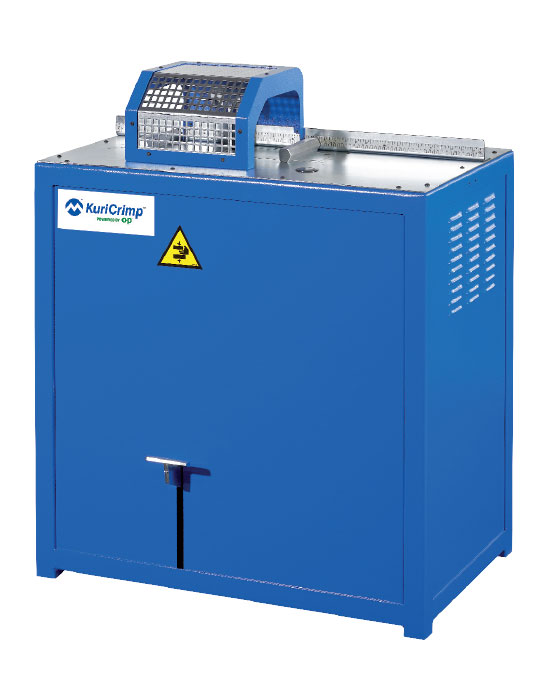

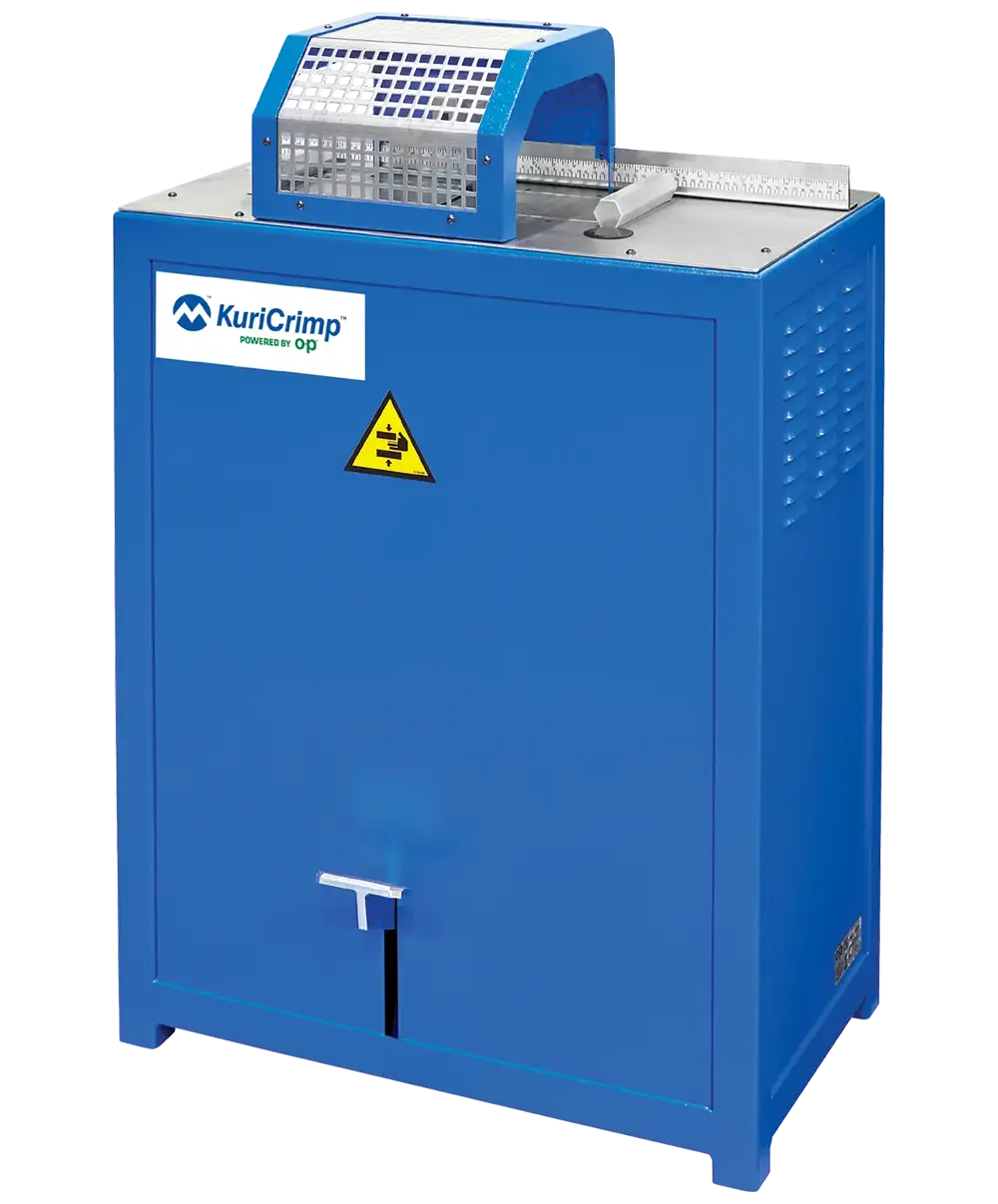

KCS-TF2-230/3

KCS-TF2-2303 hose saw
  • A stand alone unit ideal for cutting 2" four spiral and 1 1/2" six spiral hydraulic hose. The blade is recessed inside the base for additional safety.

    Suggested for use with KC3-H130 series crimpers.

  • Hose Capacity (in) Motor Strength (HP)
    1 – 2 Wire 2 4
    4 SP / 6 SP 2
    Industrial 2 1/2
    Max opening (mm) 85

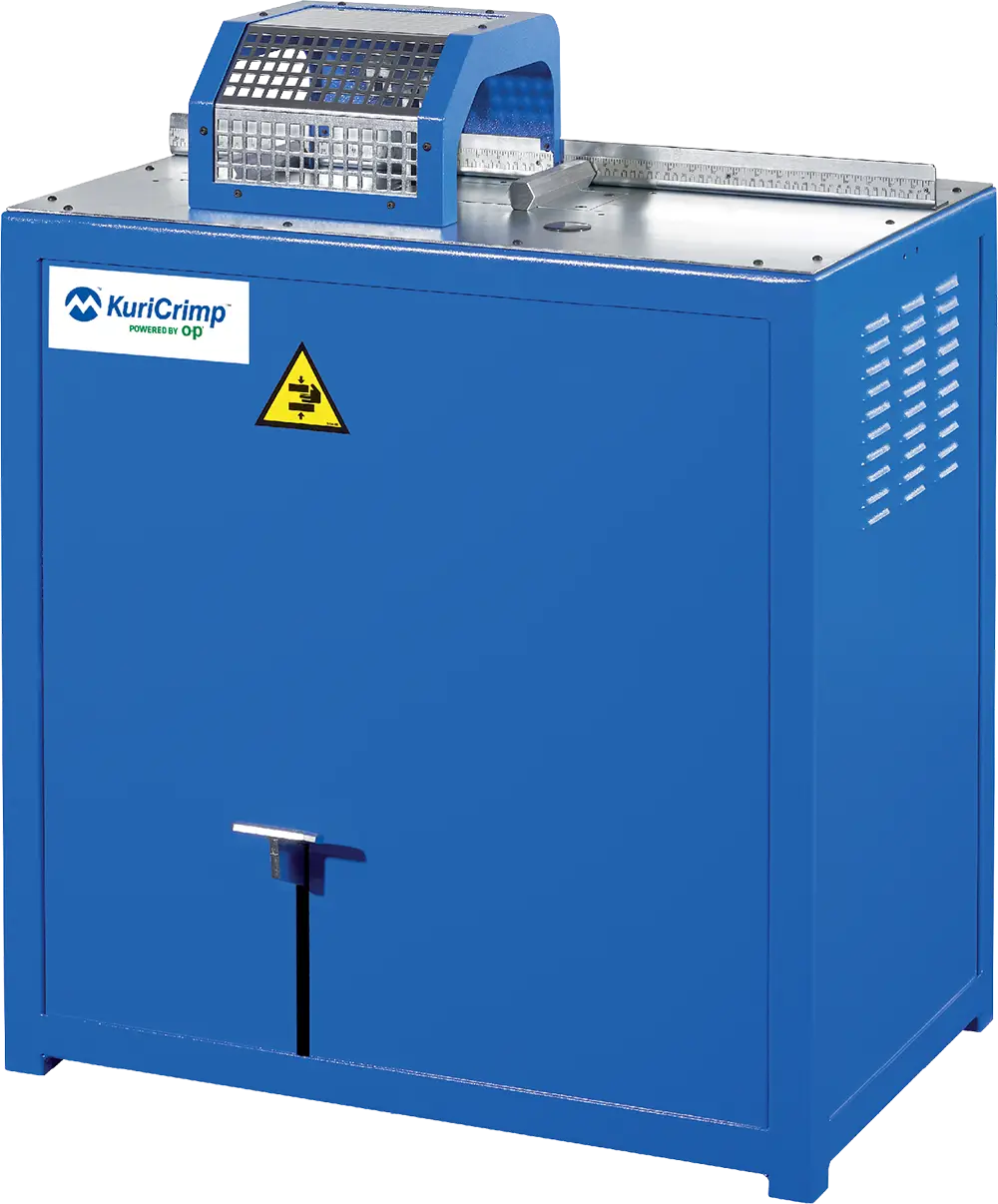

KCS-TF3-230/3

KCS-TF2-2303 hose saw
  • A stand alone unit ideal for cutting 2" four spiral and 1 1/2" six spiral hydraulic hose. The blade is recessed inside the base for additional safety.

    Suggested for use with KC3-H130 series crimpers.

  • Hose Capacity (in) Motor Strength (HP)
    1 – 2 Wire 3 7.5
    4 SP / 6 SP 2 1/2 / 2
    Industrial 2 1/2
    Max opening (mm) 100

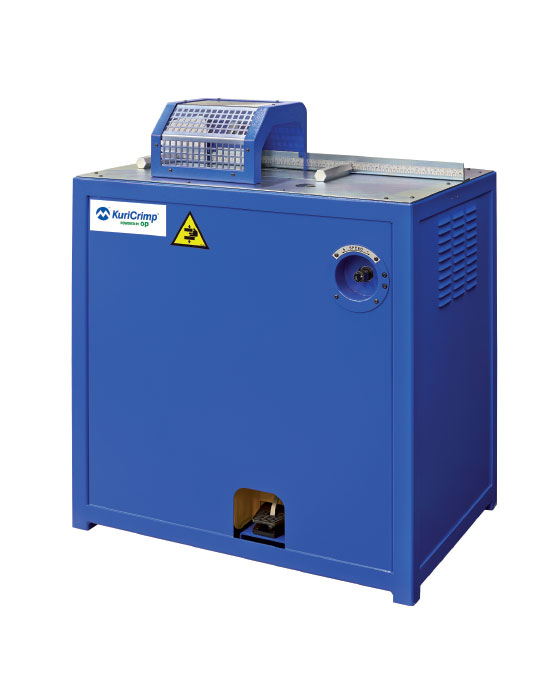

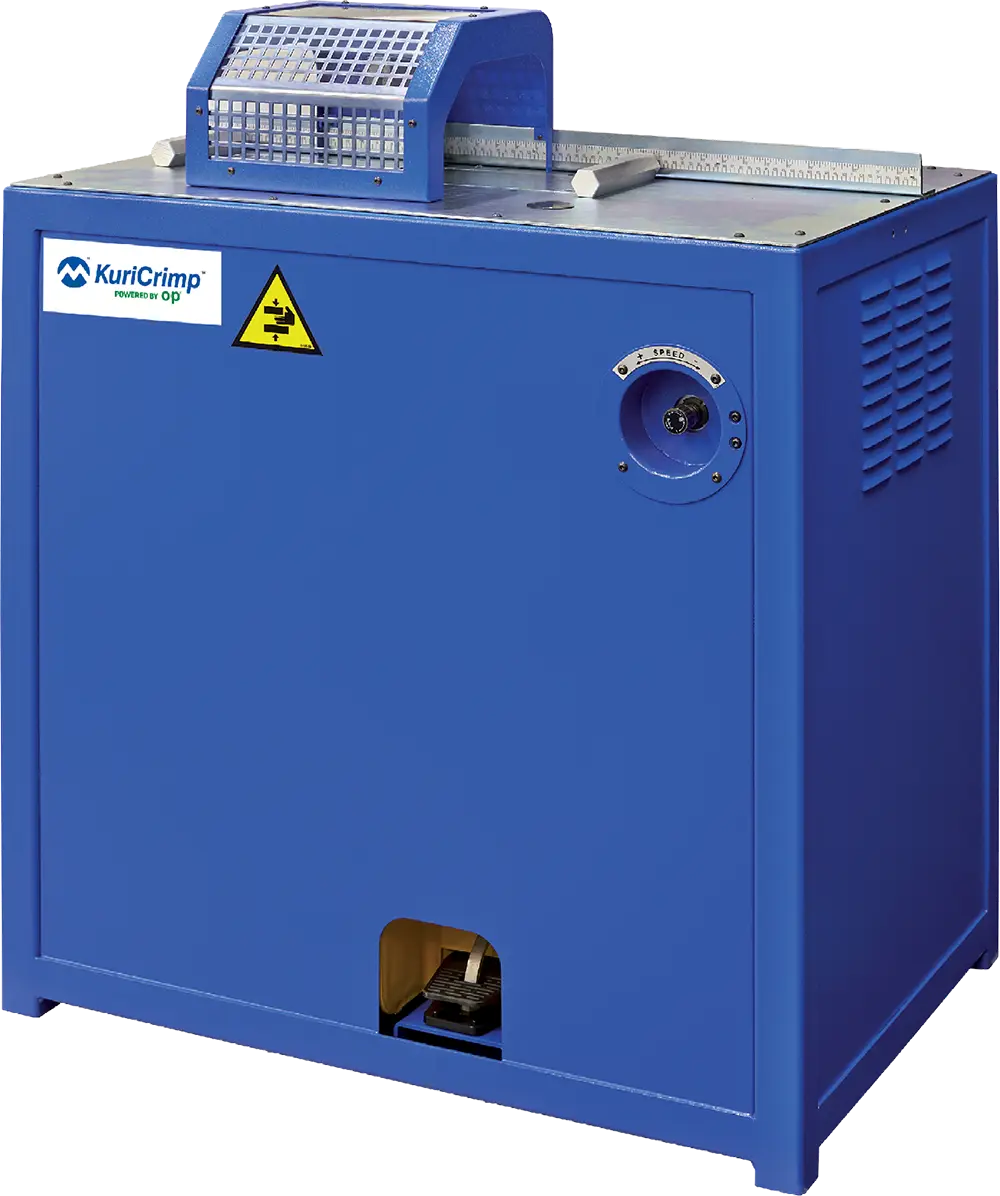

KCS-TF3/PI-230/3

KCS-TF3/PI-230/3 hose saw
  • A stand alone unit ideal for cutting 2" six spiral hydraulic hose. The blade is recessed inside the base for additional safety. Uses 100 PSI pneumatic input control.

    Suggested for use with KC3-H135 series crimpers.

  • Hose Capacity (in) Motor Strength (HP)
    1 – 2 Wire 3 7.5
    4 SP / 6 SP 2 1/2 / 2
    Industrial 2 1/2
    Max opening (mm) 100

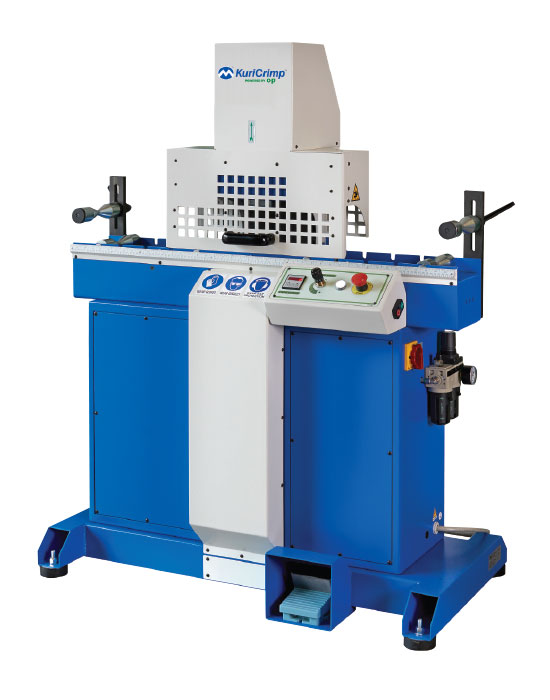

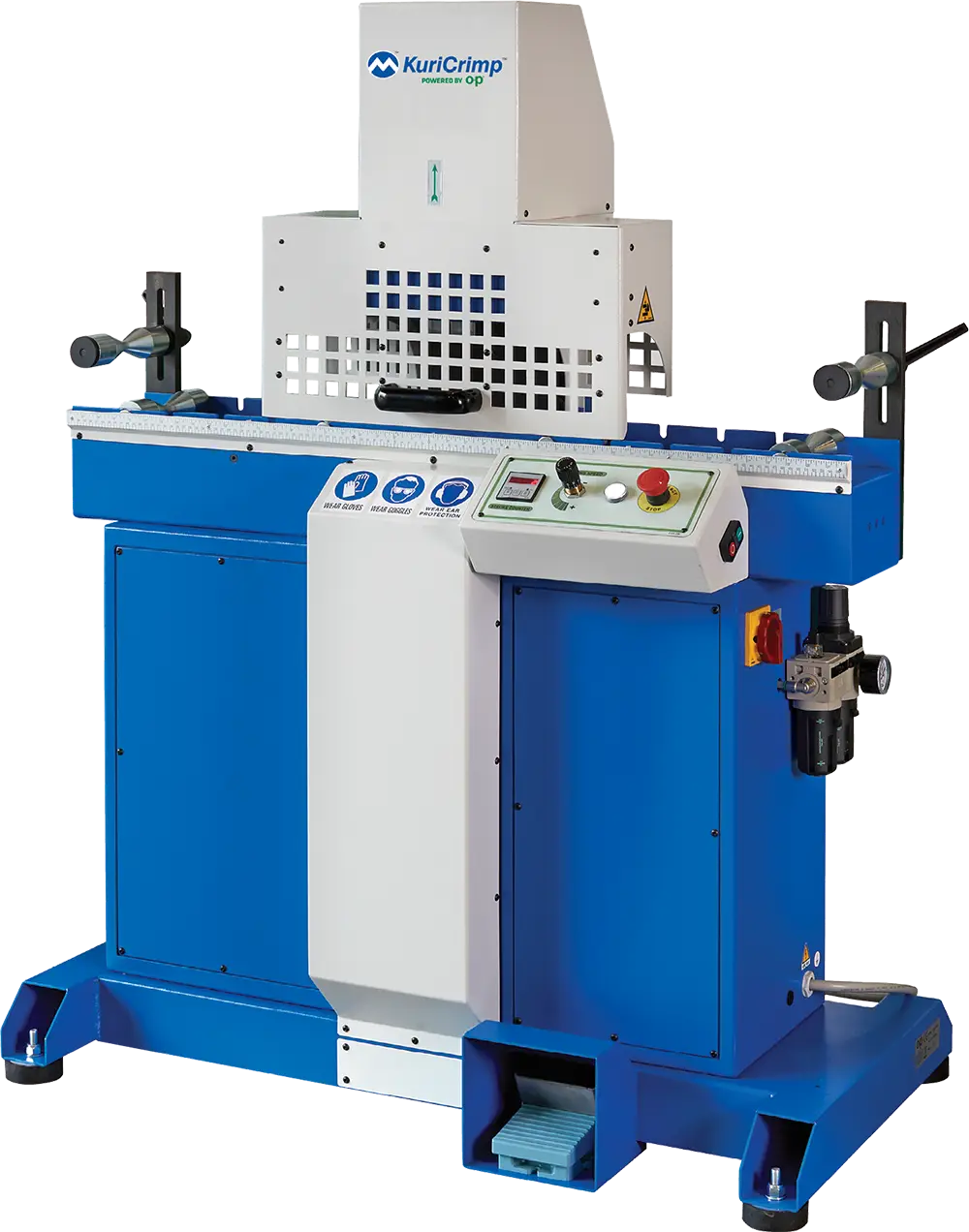

KCS-TF4-230/3

KCS-TF4-230/3 hose saw
  • Cuts up to 2" six spiral hoses. Blade chamber is completely recessed in the body of the unit allowing for more efficient ventilation.

    Suggested for use with KC4-V150 and KC4-V159 series crimpers.

  • Hose Capacity (in) Motor Strength (HP)
    1 – 2 Wire 3 7.5
    4 SP / 6 SP 2 1/2 / 2
    Industrial 3
    Max opening (mm) 100

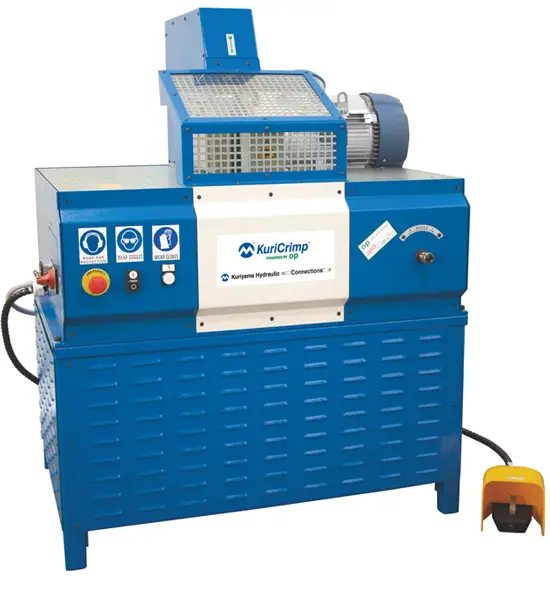

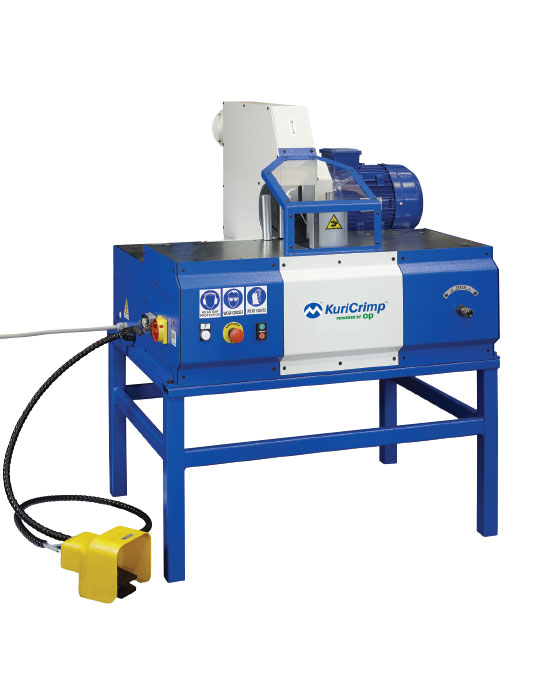

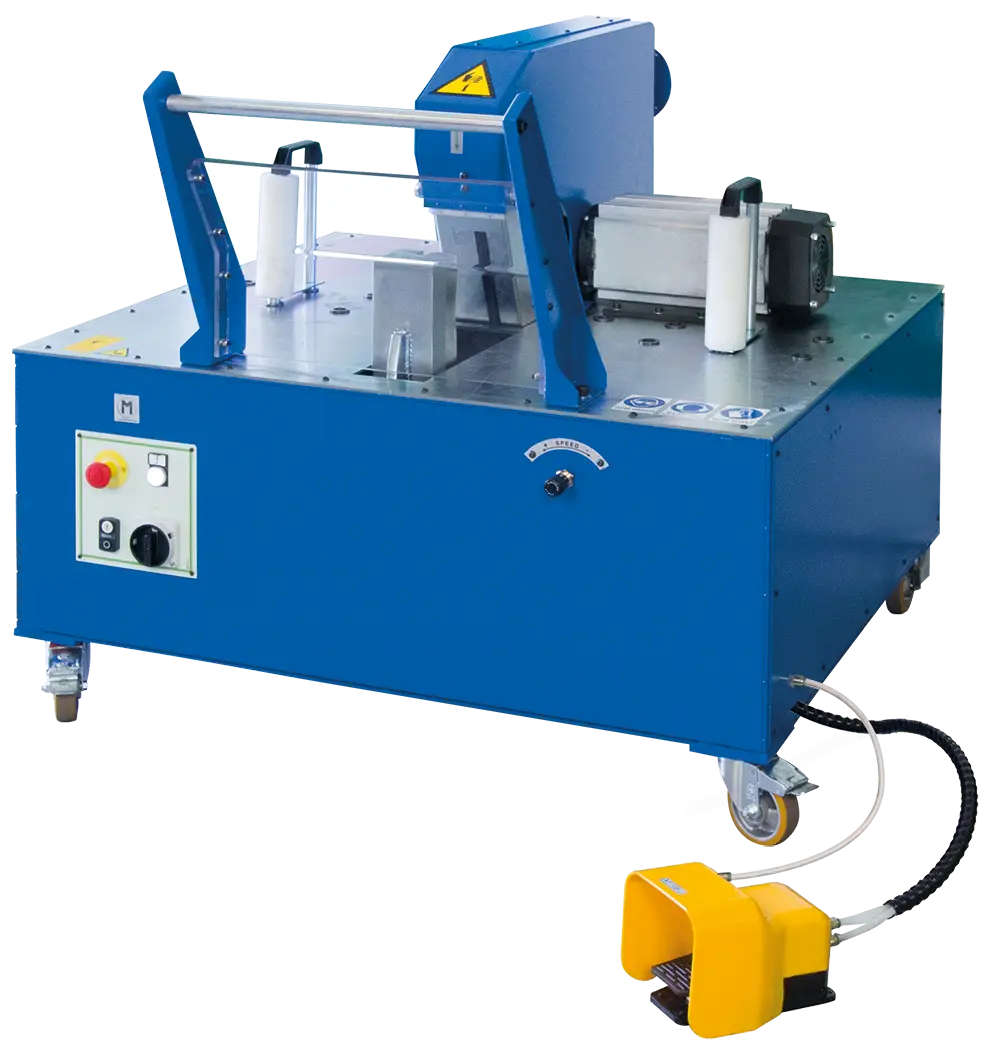

KCS-TF5-230/3

KCS-TF5-230/3 hose saw
  • Cuts up to 2" six spiral hoses. Blade chamber is completely recessed in the body of the unit allowing for more efficient ventilation.

    Suggested for use with KC4-V150 and KC4-V159 series crimpers.

  • Hose Capacity (in) Motor Strength (HP)
    1 – 2 Wire 3 10
    4 SP / 6 SP 2 1/2
    Industrial 5*
    Max opening (mm) 160

    *Dependent on hose type
