Marking Die Segments

KCMARKH Series

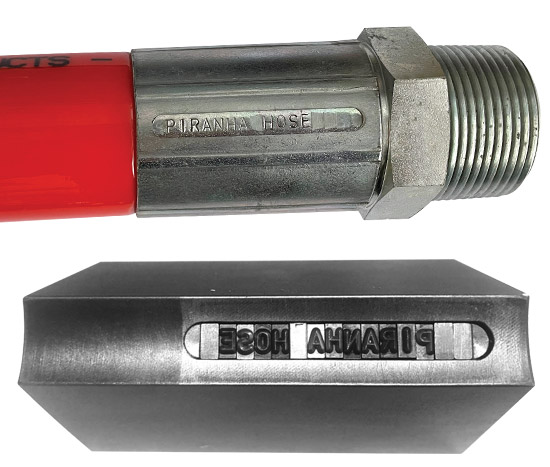

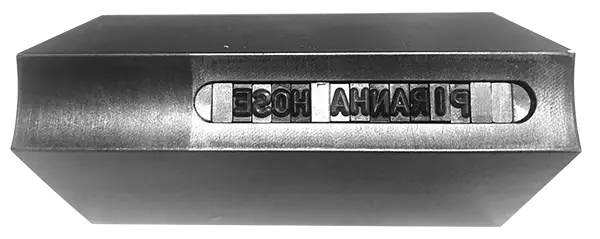

  • Imprints your own custom message, logo, or date code on the ferrule during the crimping process.
  • Purchase your own custom set of letters, numbers, symbols and spacer blocks; which can be arranged and rearranged in any manner to create various branding messages or date codes for hose traceability.
  • Used in conjunction with standard die set for that size, and replaces one of the eight standard die segments with marking die segment.
  • Marking varies in height from 1.5 mm to 4 mm, and in length from 10 to 15 characters, depending on die size.
  • For use with KC1-H130, KC3-H130, KC1-H135, KC3-H135, KC3-H144 and KC3-H170 Series Crimpers.
  • Also available for KC1-H83, KC3-H88 and all KC4 Series crimpers. Contact Kuriyama Customer Service for details.
Marking Dies

For KC1-H130, KC3-H130, KC1-H135, KC3-H135, KC3-H144 and KC3-H170 Series Crimpers

  • Part Number Crimp Range (mm) Closed Diameter (mm) Length (mm) Weight (lbs/ea) Available Character Spaces Individual Character Blocks Part Number
    KCMARKH119-12 12.0 - 14.0 12 60 1.5 10 KCHAR1.5MM
    KCMARKH119-14 14.0 - 16.0 14 60 1.5 10 KCHAR1.5MM
    KCMARKH119-16 16.0 - 19.0 16 60 1.5 10 KCHAR2MM
    KCMARKH119-19 19.0 - 22.0 19 60 1.5 15 KCHAR2MM
    KCMARKH119-22 22.0 - 25.0 22 60 1.5 15 KCHAR2MM
    KCMARKH119-25 25.0 - 29.0 25 60 1.5 15 KCHAR2MM
    KCMARKH119-29 29.0 - 34.0 29 70 1.5 15 KCHAR2MM
    KCMARKH119-34 34.0 - 38.0 34 70 1.5 15 KCHAR3MM
    KCMARKH119-38 38.0 - 42.0 38 85 1.5 15 KCHAR3MM
    KCMARKH119-42 42.0 - 46.0 42 85 1.9 15 KCHAR3MM
    KCMARKH119-46 46.0 - 50.0 46 95 1.9 15 KCHAR3MM
    KCMARKH119-50 50.0 - 54.0 50 95 1.9 15 KCHAR3MM
    KCMARKH119-54 54.0 - 58.0 54 110 1.9 15 KCHAR3MM
    KCMARKH119-58 58.0 - 63.0 58 95 1.9 15 KCHAR3MM
    KCMARKH119-63 63.0 - 69.0 63 120 1.9 15 KCHAR3MM
    KCMARKH119-69 69.0 - 73.0 69 100 1.8 15 KCHAR3MM
    KCMARKH119-73 73.0 - 77.0 73 120 1.5 15 KCHAR3MM
    KCMARKH119-77 77.0 - 86.0 77 120 1.5 15 KCHAR3MM
    KCMARKH119-86 86.0 - 90.0 86 120 1.5 15 KCHAR3MM
    KCMARKH119-90 90.0 - 96.0 90 150 1.5 15 KCHAR3MM
    KCMARKH119-96 96.0 - 103.0 96 120 1.5 15 KCHAR3MM

For KC3-H144 and KC3-H170 Series Crimpers Only

  • Part Number Crimp Range (mm) Closed Diameter (mm) Length (mm) Weight (lbs/ea) Available Character Spaces Individual Character Blocks Part Number
    KCMARKH144-103 103.0 - 106.0 103 130 1.5 12 KCHAR4MM
    KCMARKH144-106 106.0 - 111.0 106 130 1.5 12 KCHAR4MM
    KCMARKH144-111 111.0 - 116.0 111 130 1.5 12 KCHAR4MM
    KCMARKH144-116 116.0 - 121.0 116 130 1.5 12 KCHAR4MM
    KCMARKH144-121 121.0 - 126.0 121 130 1.5 12 KCHAR4MM
    KCMARKH144-126 126.0 - 131.0 126 130 1.5 12 KCHAR4MM
    KCMARKH144-131 131.0 - 144.0 131 130 1.5 12 KCHAR4MM

Individual Character Blocks - KCHAR Series

  • Part Number Die Sizes (mm) Character Height (mm)
    KCHAR1.5MM 12 & 14 1.5
    KCHAR2MM 16, 19, 22, 25 & 29 2
    KCHAR3MM 34, 38, 42, 46, 50, 54, 58, 63, 69 & 73 3
    KCHAR4MM 103, 106, 111, 116, 121, 121, 126 & 131 4
