Standard Volume Crimpers

Standard duty crimpers are well suited for in-shop crimping of hydraulic hose as well as industrial hose up to 4” (depending on fitting type), and are generally best suited to perform hundreds of crimps per day.

The wide range of standard duty crimpers allows for selection of a crimper well suited to your particular needs, and allows for a high degree of customization with its variety of user friendly options, including programmable logic computer controls, built-in crimp calculators, custom shaped and marking dies, as well as a selection of various crimper voltages.

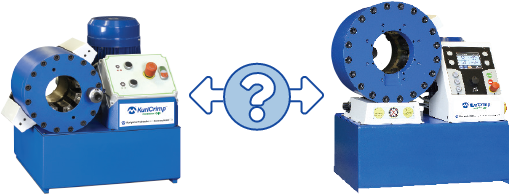

Which crimper is right for you?

Comparison Guide

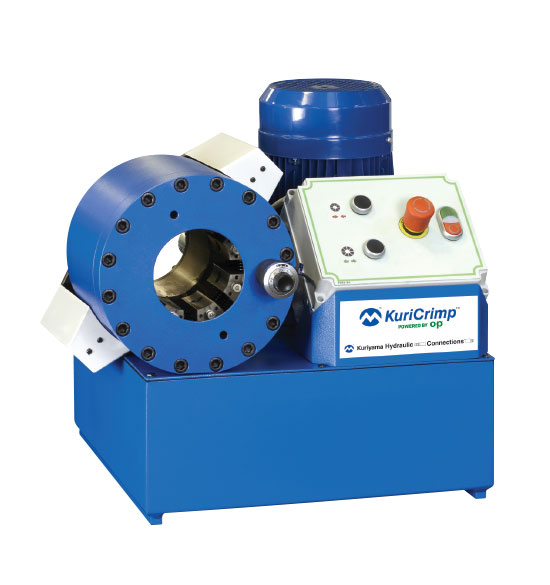

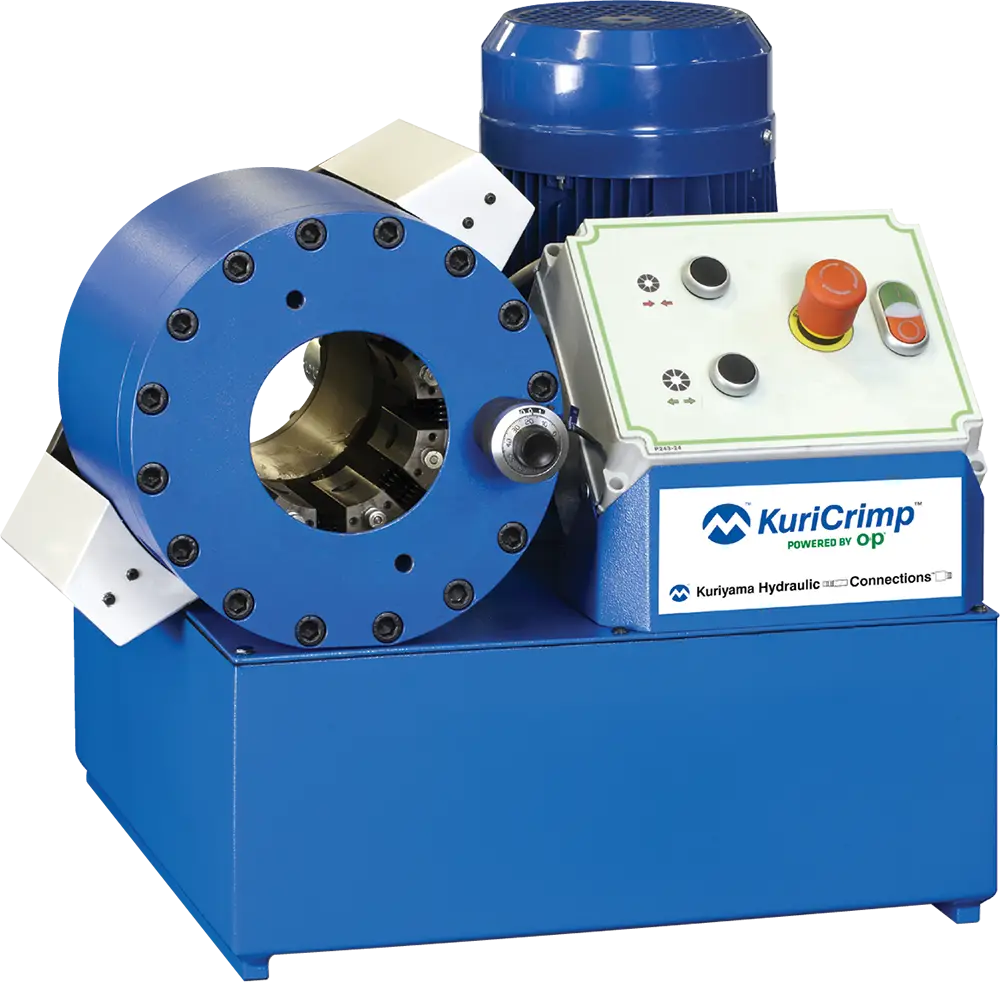

KC1-H83 Series

A highly precise unit that packs a punch. Its small footprint makes it an ideal fit for shops where space is at a premium.

Now available in 12V for mobile service trucks.

Hose Capacity (in)		Crimping Force (ton)
1 – 2 Wire	1 1/2	150
4 SP / 6 SP	1 1/4 / 1
90° Fittings	1 1/4
Industrial	1 1/2

Part Number	Motor Info
KC1-H83-230/1	4.0 HP (230 V) 1 PH
KC1-H83-230/3	4.0 HP (230 V) 3 PH
KC1-H83-12V	4.0HP (12V)

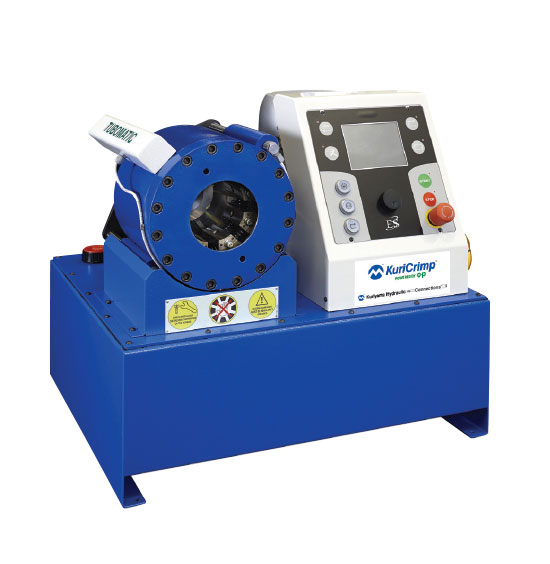

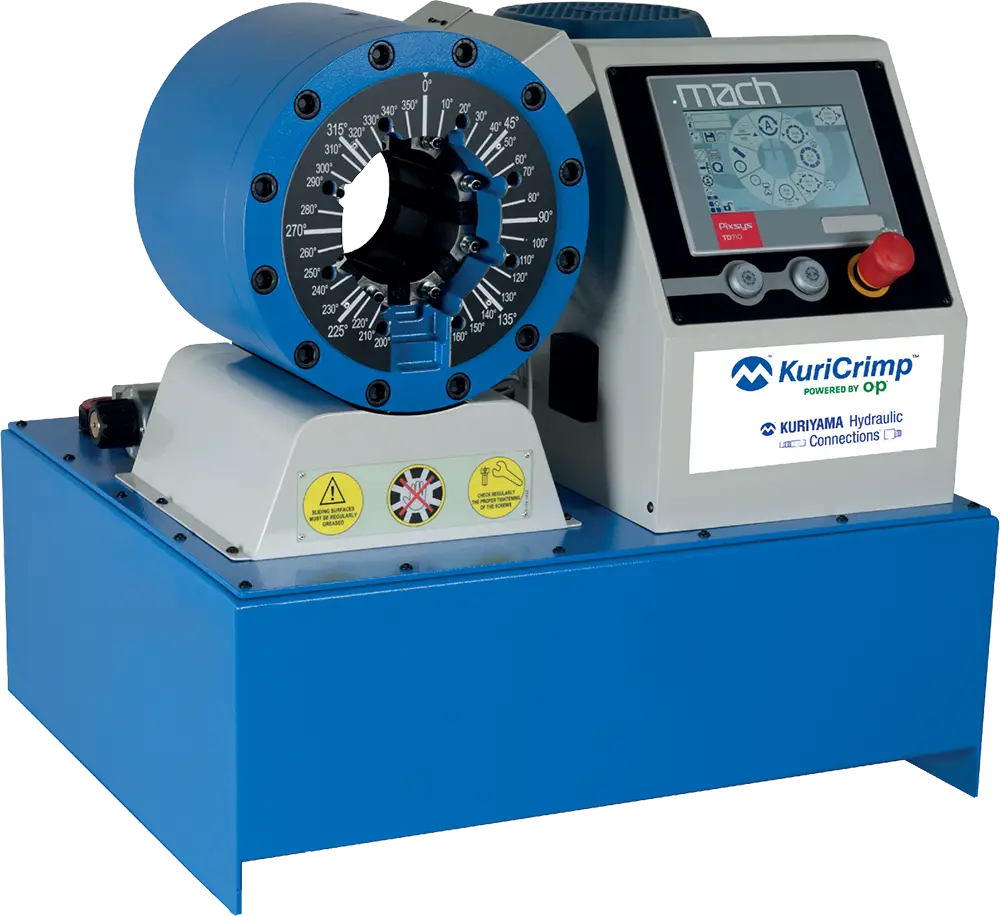

KC3-H88 Series

The first in its class to offer an automatic back limit switch and ES3 electronic control, greatly increasing crimping efficiency.

Hose Capacity (in)		Crimping Force (ton)
1 – 2 Wire	1 1/2	150
4 SP / 6 SP	1 1/4 / 1
90° Fittings	1 1/4
Industrial	1 1/2

Part Number	Motor Info
KC3-H88-230/1	5.0 HP (230 V) 1 PH
KC3-H88-230/3	5.0 HP (230 V) 3 PH

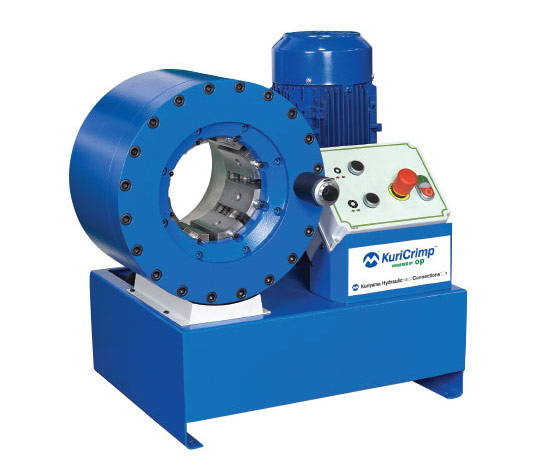

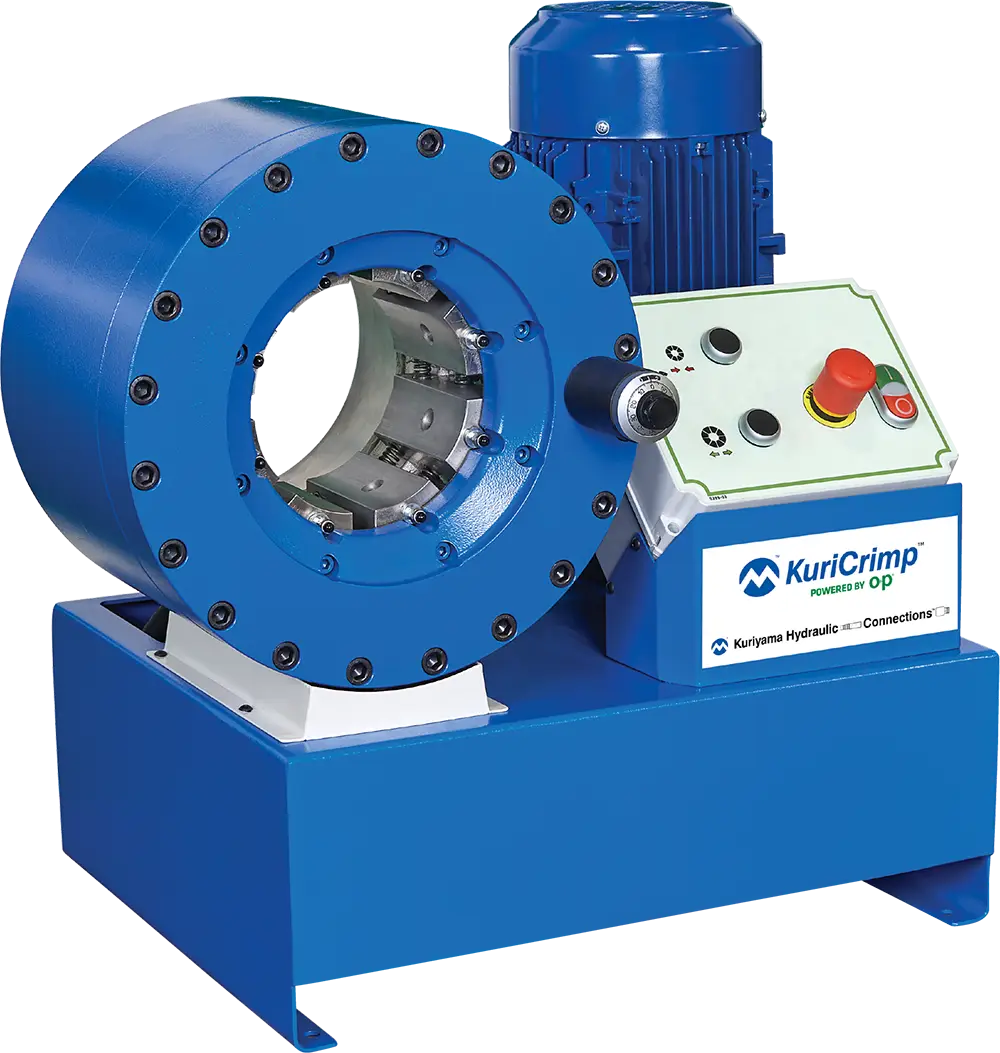

KC1-H130 Series

The KC1-H130 is a powerful yet economical shop crimper with the ability to crimp up to 2" 4 SP, 1 1/4" 6 SP hydraulic as well as industrial hose up to 3".

Hose Capacity (in)		Crimping Force (ton)
1 – 2 Wire	2	210
4 SP / 6 SP	2 / 1 1/4
90° Fittings	2
Industrial	3

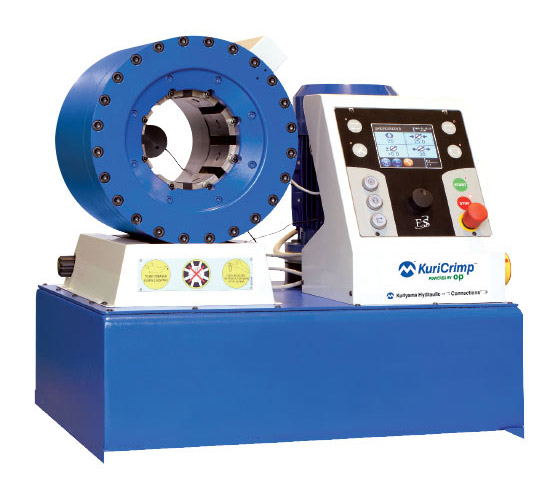

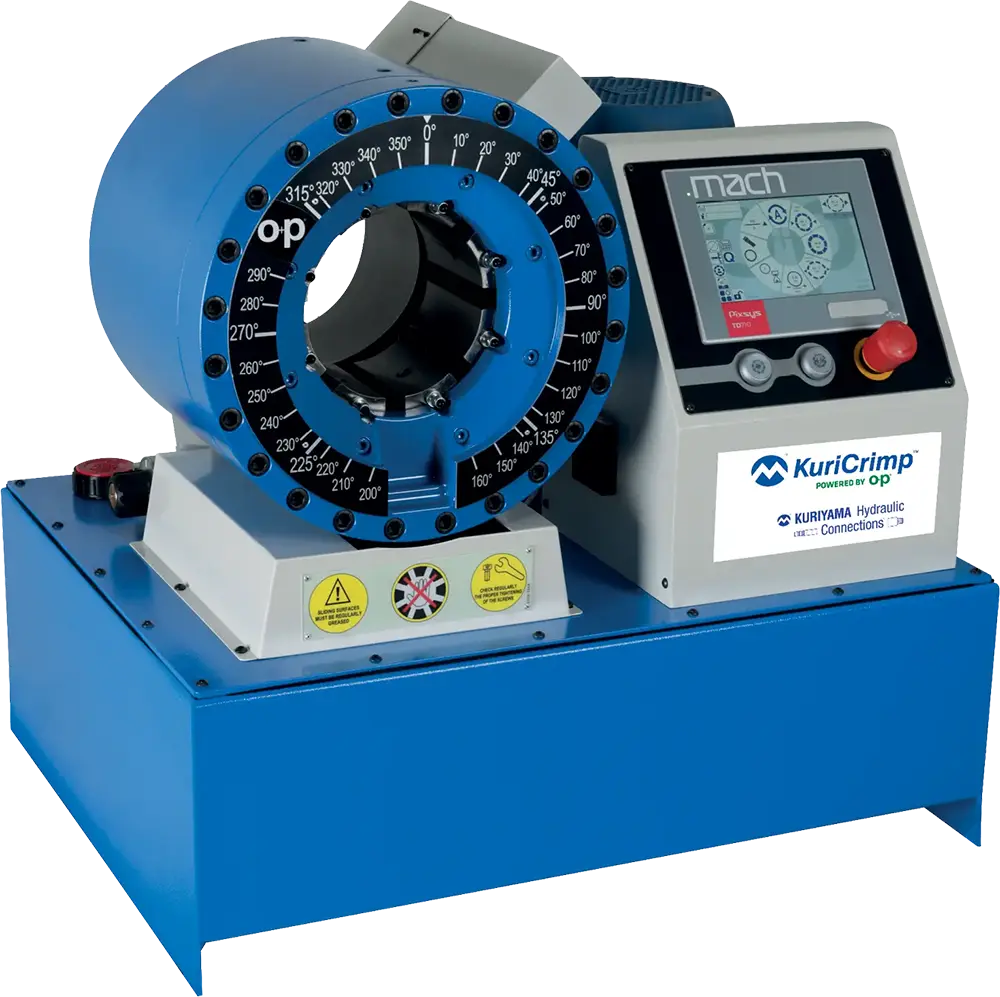

KC3-H130 Series

The production oriented KC3-H130 takes a step up in size capabilities, with the ability to crimp 2" wire braid and 4 SP hydraulic hose, as well as 1 1/2" 5,000 PSI 6 SP hydraulic hose intermittently. Its back limit switch and ES3 computerized controller reduce crimp cycle times.

Hose Capacity (in)		Crimping Force (ton)
1 – 2 Wire	2	210
4 SP / 6 SP	2 / 1 1/2*
90° Fittings	2
Industrial	3

*1 1/2" limited to intermittent use with 5,000 PSI hose & 1-pc fittings

Part Number	Motor Info
KC3-H130-230/1	5.5 HP (230 V) 1 PH
KC3-H130-230/3	5.5 HP (230 V) 3 PH

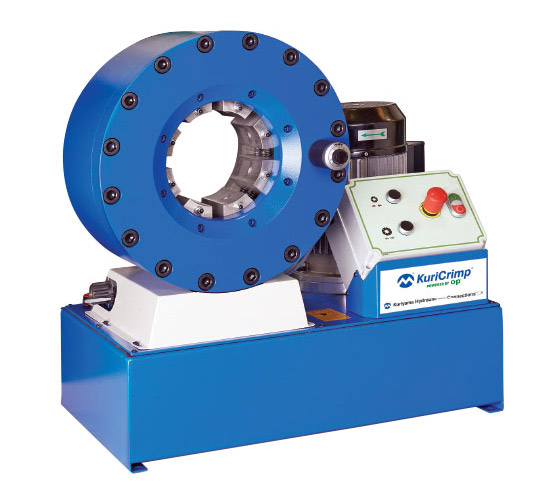

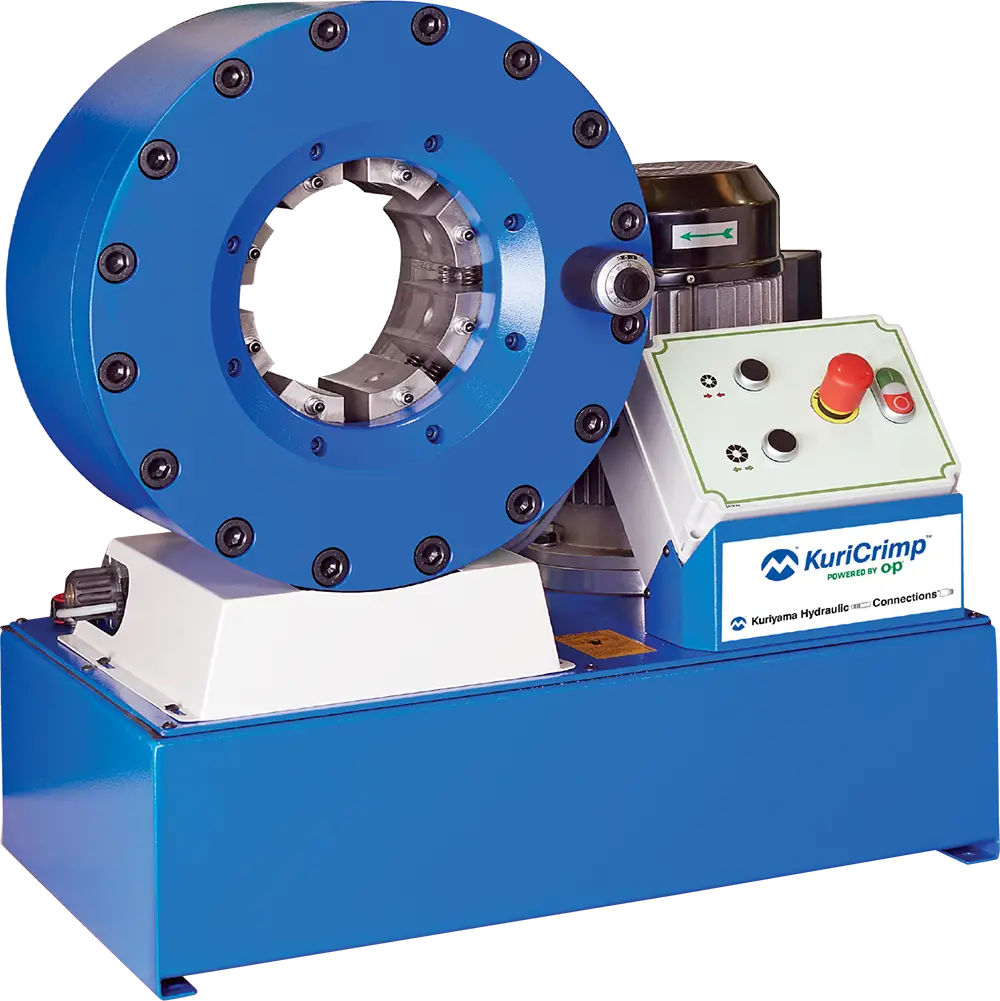

KC1-H135 Series

A powerful, no frills crimper that gets the job done. Handles all styles of hydraulic hose up to 2", as well as industrial hose up to 3".

Hose Capacity (in)		Crimping Force (ton)
1 – 2 Wire	2	330
4 SP / 6 SP	2
90° Fittings	2
Industrial	3

Part Number	Motor Info
KC1-H135-230/1	5.5 HP (230 V) 1 PH
KC1-H135-230/3	7.5 HP (230 V) 3 PH

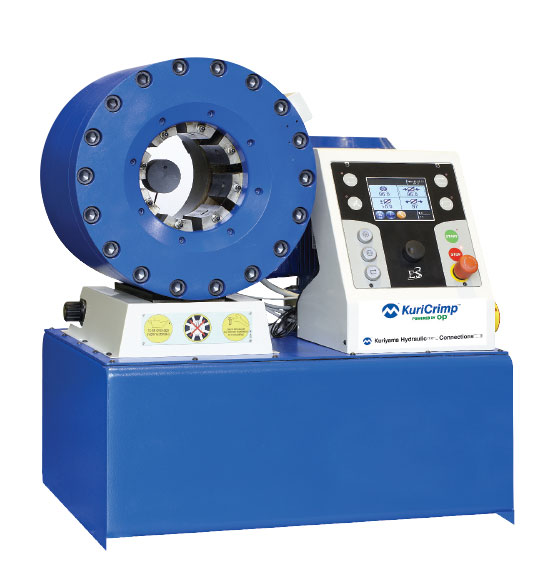

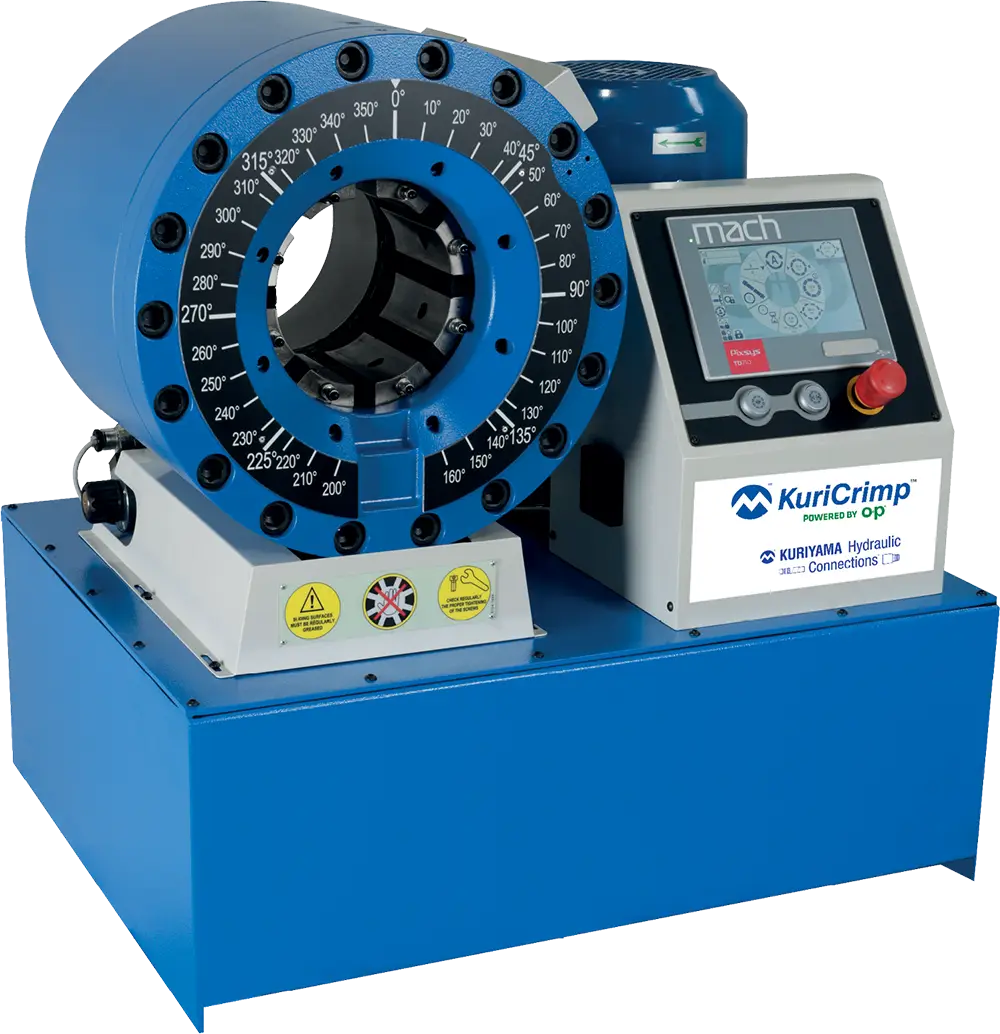

KC3-H135 Series

The production oriented KC3-H135 is a powerful shop crimper that handles all types and sizes of hydraulic hose up to 2" and industrial hose up to 3". Its back limit switch and ES3 computerized controller reduce crimp cycle times.

Hose Capacity (in)		Crimping Force (ton)
1 – 2 Wire	2	345
4 SP / 6 SP	2
90° Fittings	2
Industrial	3

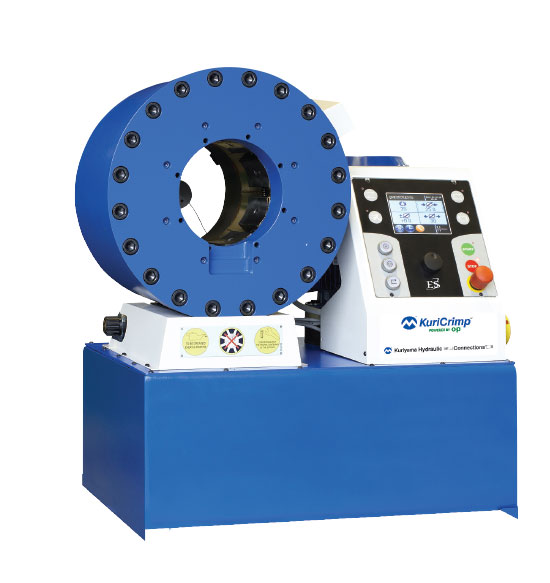

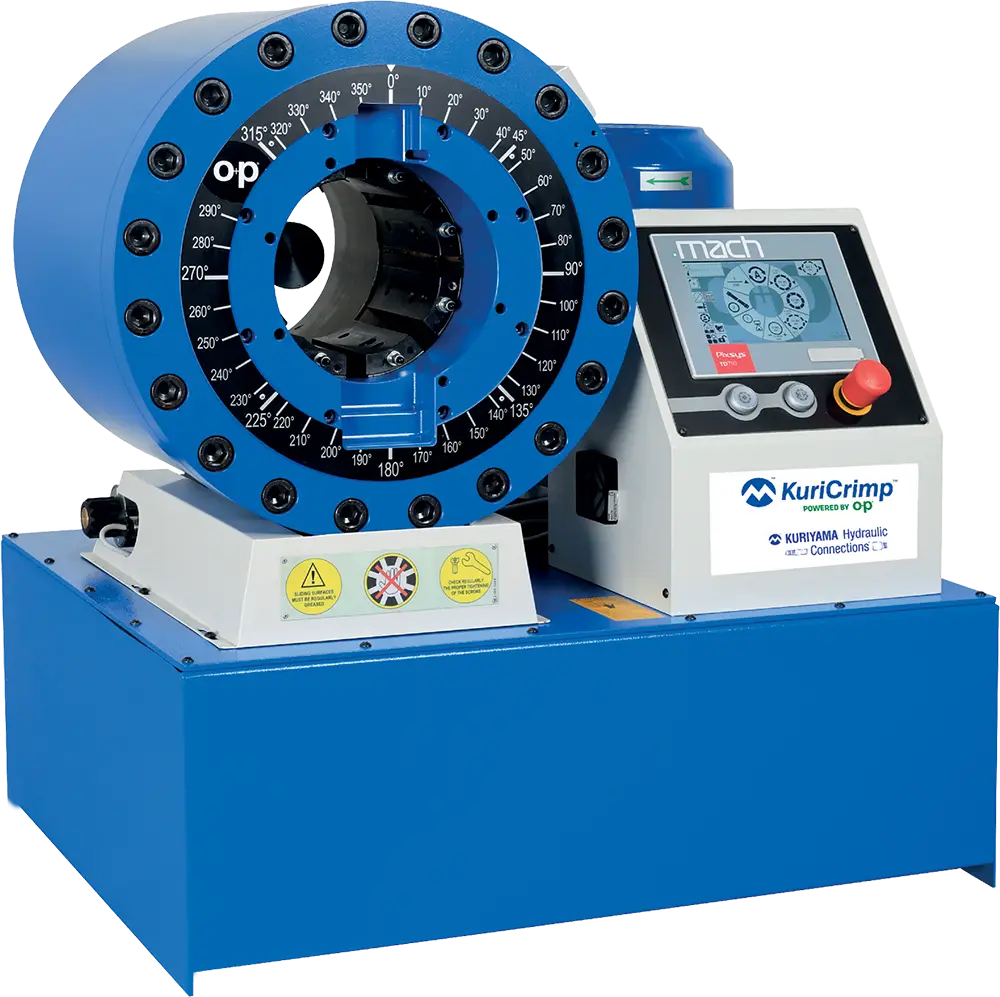

KC3-H144 Series

The KC3-H144 is a powerful crossover crimper that handles all types and sizes of hydraulic hose and industrial hose up to 4". Its back limit switch and ES3 computerized controller reduce crimp cycle times. Reduction dies included.

Hose Capacity (in)		Crimping Force (ton)
1 – 2 Wire	2 1/2	440
4 SP / 6 SP	2 1/2
90° Fittings	2
Industrial	4

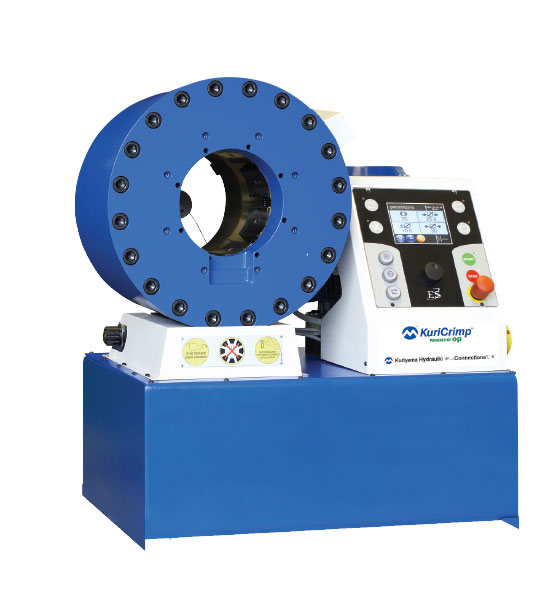

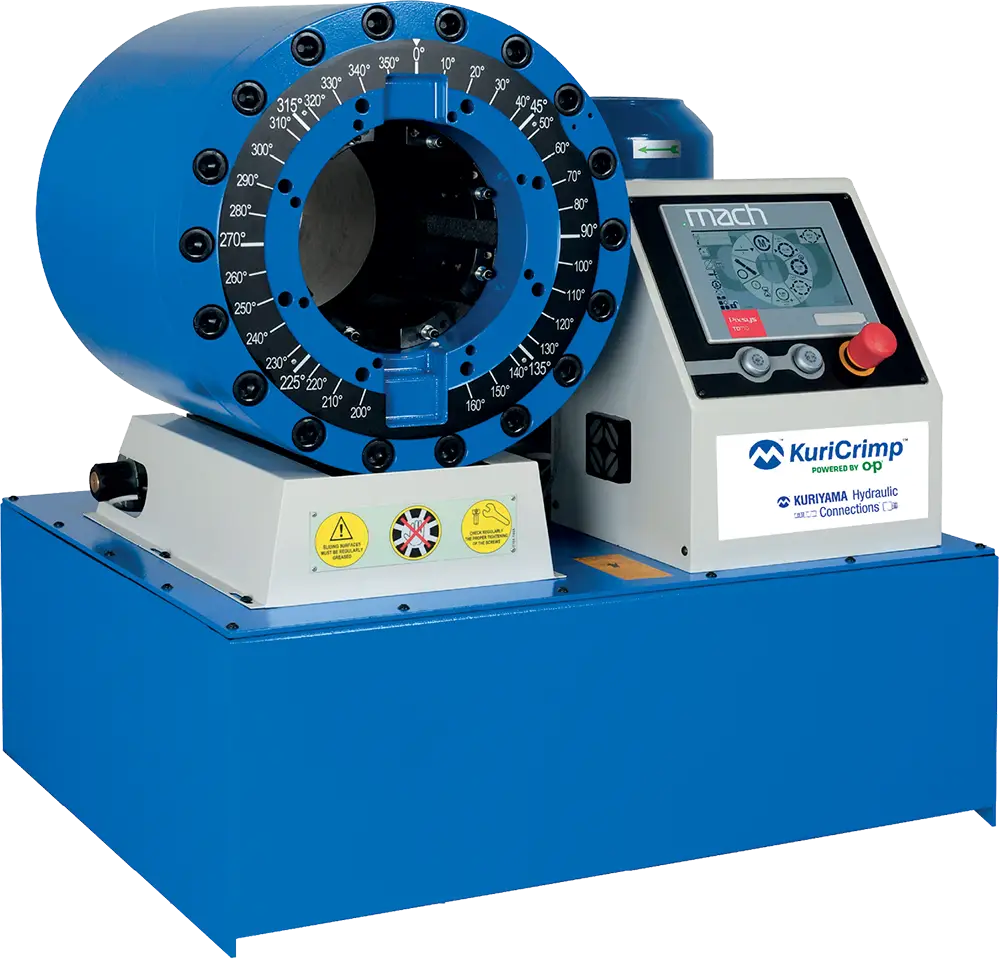

KC3-H170 Series Series

The widest opening of all the Standard Volume Crimpers makes this crimper ideal for industrial hose. It makes an excellent hydraulic hose crimper as well, handling up to 2" wire braid and 4 SP hose, along with our 6 SP hoses up to 5000 PSI using F Series, 1-piece fittings. Reduction dies included.

Hose Capacity (in)		Crimping Force (ton)
1 – 2 Wire	2	308
4 SP / 6 SP	2 / 2*
90° Fittings	2
Industrial	4†

*2" limited to 5,000 PSI hose using 1-pc fittings

^†Up to 5" depending on hose and coupling type
